Professional multi-algorithm saturation processor with analog simulation. More...

#include <Saturation.h>

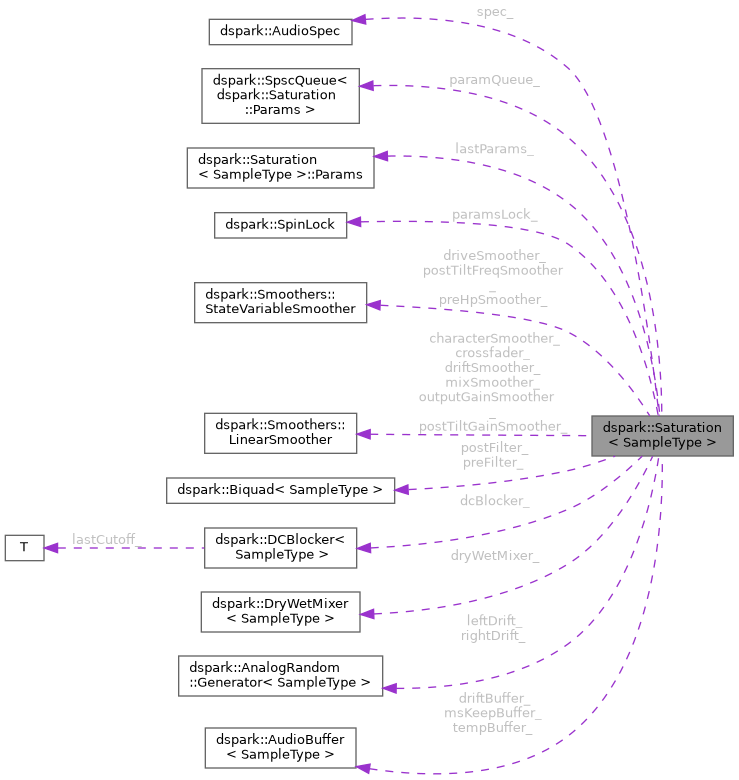

Collaboration diagram for dspark::Saturation< SampleType >:

[legend]

Classes
struct	Params

Public Types
enum class	Algorithm { Tube , Tape , Transformer , SoftClip , HardClip , Exciter , Wavefolder , Bitcrusher , Downsample , MultiStage }
	Defines the harmonic generation topology. More...

enum class	ProcessingMode { Stereo , MidOnly , SideOnly , MidSide }
	Determines how the stereo field is processed. More...

enum class	OutputMode { Normal , WetOnly , Delta }
	Determines the final output signal routing. More...

Public Member Functions
	Saturation ()

	~Saturation ()=default

	Saturation (const Saturation &)=delete

Saturation &	operator= (const Saturation &)=delete

void	prepare (const AudioSpec &spec)
	Prepares all internal resources, filters, and buffers.

void	reset () noexcept
	Clears all internal states, phase memory, and history buffers.

void	process (AudioBufferView< SampleType > buffer) noexcept
	Compatibility alias of processBlock(), with the same thread and preparation contract. Prefer processBlock() in new code.

void	processBlock (AudioBufferView< SampleType > buffer) noexcept
	Processes an audio block in-place (AudioProcessor standard contract).

void	setAlgorithm (Algorithm algo)
	Sets the saturation algorithm topology.

void	setDrive (SampleType dB)
	Sets the input drive gain.

void	setMix (SampleType mix01)
	Sets the global Dry/Wet blend.

void	setCharacter (SampleType c)
	Adjusts the specific character/bias of the selected algorithm.

void	setProcessingMode (ProcessingMode m)
	Sets the routing configuration for multi-channel processing.

void	setOutputMode (OutputMode m)
	Sets the output signal path.

void	setAnalogDrift (SampleType i)
	Injects true-stereo pseudo-random low-frequency modulation (drift) into the saturation drive.

void	setPreFilterHpFrequency (SampleType hz)
	Configures a pre-saturation high-pass filter.

void	setOutputGain (SampleType dB)
	Sets the post-saturation make-up or trim gain.

void	setDcBlocking (bool on)
	Enables or disables the fixed 10Hz DC Blocker.

void	setAdaptiveBlend (bool on) noexcept
	Enables program-dependent saturation density.

void	setAntialiasing (bool on) noexcept
	Enables antiderivative anti-aliasing (ADAA) on the memoryless curves (SoftClip / Tube / HardClip), which suppresses the aliasing the nonlinearity generates. Best combined with oversampling (ADAA + OS is the cleanest, per Parker/Zavalishin DAFx-16 and Bilbao et al. 2017). Off by default.

void	setSlewSensitivity (SampleType amount) noexcept
	Sets a derivative-based (slew rate) saturation multiplier.

void	setPostFilterTilt (SampleType centerHz, SampleType amountDb)
	Configures a post-saturation first-order tilt EQ.

void	setOversampling (int factor)
	Configures internal polyphase oversampling to reduce aliasing.

int	getOversamplingFactor () const noexcept
	Retrieves the current oversampling factor.

int	getLatency () const noexcept
	Reports the processor's algorithmic latency in samples.

int	getLatencySamples () const noexcept
	Compatibility alias of getLatency(), in prepared-rate samples.

Algorithm	getCurrentAlgorithm () const noexcept
	Retrieves the currently active underlying algorithm.

SampleType	getGainReductionDb () const noexcept
	Calculates the peak gain reduction (clipping amount) for metering.

std::vector< uint8_t >	getState () const
	Serializes the parameter state (setup/UI threads; allocates).

bool	setState (const uint8_t *data, size_t size)
	Restores parameters from a blob (setup/UI threads: it forwards the stored oversampling factor to setOversampling, which may allocate). Out-of-range enum values from foreign or corrupt blobs are clamped.

Protected Member Functions
template<typename Fn >
void	pushParam (Fn &&mutate)

void	handleParameterChanges ()

void	applyParamSnapshot (const Params &p)

void	processSaturationPipeline (AudioBufferView< SampleType > buffer) noexcept

void	applyAdaptiveBlend (AudioBufferView< SampleType > buffer) noexcept
	Program-dependent dry/wet density blend (base rate, L/R domain). The dry reference is the DryWetMixer capture, which carries the same latency compensation as the wet path - no comb filtering.

void	dispatchSaturator (detail::SaturationAlgorithm< SampleType > *baseAlgo, AudioBufferView< SampleType > buffer, bool useDrift) noexcept

template<typename ExactAlgo >
void	processCore (ExactAlgo *algo, AudioBufferView< SampleType > buffer, bool useDrift) noexcept

void	applyOutputGain (AudioBufferView< SampleType > buffer) noexcept

Static Protected Member Functions
static void	sanitizeParams (Params &p, const Params &prev) noexcept

Protected Attributes
AudioSpec	spec_ {}

bool	prepared_ = false

std::array< std::unique_ptr< detail::SaturationAlgorithm< SampleType > >, kNumAlgorithms >	pool_

std::atomic< detail::SaturationAlgorithm< SampleType > * >	active_ { nullptr }

std::atomic< detail::SaturationAlgorithm< SampleType > * >	next_ { nullptr }

SpscQueue< Params >	paramQueue_

Params	lastParams_

SpinLock	paramsLock_

std::atomic< bool >	paramsPending_ { false }

std::atomic< bool >	antialiasShadow_ { false }
	Mirror for getState.

ProcessingMode	procMode_ = ProcessingMode::Stereo

OutputMode	outputMode_ = OutputMode::Normal

bool	dcBlockingEnabled_ = true

std::atomic< Algorithm >	currentAlgoType_ { Algorithm::SoftClip }

Smoothers::StateVariableSmoother	driveSmoother_

Smoothers::StateVariableSmoother	preHpSmoother_

Smoothers::StateVariableSmoother	postTiltFreqSmoother_

Smoothers::LinearSmoother	mixSmoother_

Smoothers::LinearSmoother	characterSmoother_

Smoothers::LinearSmoother	driftSmoother_

Smoothers::LinearSmoother	outputGainSmoother_

Smoothers::LinearSmoother	postTiltGainSmoother_

Smoothers::LinearSmoother	crossfader_

Biquad< SampleType >	preFilter_

Biquad< SampleType >	postFilter_

DCBlocker< SampleType >	dcBlocker_

DryWetMixer< SampleType >	dryWetMixer_

AnalogRandom::Generator< SampleType >	leftDrift_

AnalogRandom::Generator< SampleType >	rightDrift_

AudioBuffer< SampleType >	tempBuffer_

AudioBuffer< SampleType >	driftBuffer_

AudioBuffer< SampleType >	msKeepBuffer_
	MidOnly/SideOnly channel snapshot.

std::unique_ptr< Oversampling< SampleType > >	oversampler_

int	oversamplingFactor_ = 2
	2x by default: the curves alias at 1x (see setOversampling()).

std::atomic< SampleType >	gainReductionDb_ { SampleType(0) }

std::atomic< bool >	adaptiveBlend_ { false }

std::array< SampleType, kMaxCh >	prevBlendSample_ {}

std::atomic< SampleType >	slewSensitivity_ { SampleType(0) }

std::array< SampleType, kMaxCh >	prevSlewSample_ {}

float	lastPreHpFreq_ = -1.0f

float	lastPostTiltFreq_ = -1.0f

float	lastPostTiltGain_ = std::numeric_limits<float>::quiet_NaN()

Static Protected Attributes
static constexpr int	kNumAlgorithms = 10

static constexpr int	kMaxCh = 16

Detailed Description

template<typename SampleType>
class dspark::Saturation< SampleType >

Professional multi-algorithm saturation processor with analog simulation.

This class provides a high-quality saturation pipeline featuring 10 distinct algorithms ranging from soft clipping to complex magnetic tape and transformer modeling. Zero latency at 1x; with oversampling enabled the latency equals the oversampler group delay (see getLatency()).

Channel handling: the saturation stage processes up to 16 channels and no more than the prepared spec's channel count; any further channels in the incoming view pass through the linear stages (filters, gain, mix) only.

Template Parameters

SampleType The floating-point precision to use (must be float or double).

Definition at line 609 of file Saturation.h.

Member Enumeration Documentation

◆ Algorithm

template<typename SampleType >

enum class dspark::Saturation::Algorithm

strong

Defines the harmonic generation topology.

Enumerator
Tube	Asymmetric triode emulation. Dominant 2nd harmonic, compresses negative excursions.
Tape	Anhysteretic Langevin magnetisation (tape under AC bias) with dynamic head-bump and HF roll-off.
Transformer	Core saturation model. LF saturates before HF.
SoftClip	Symmetric Tanh curve. Odd harmonics only (3rd, 5th, 7th).
HardClip	Digital hard-clipping. Extreme odd harmonics, highly aliasing without oversampling.
Exciter	Polynomial waveshaper designed to synthesize high-frequency harmonic content.
Wavefolder	First-order ADAA (Antiderivative Anti-Aliasing) sine wavefolder.
Bitcrusher	Quantization noise generator with TPDF dithering.
Downsample	Sample-and-hold rate reduction with anti-aliasing pre-filtering.
MultiStage	Serial cascade: Tube -> Tape -> Transformer. Gain-staged internally.

Definition at line 620 of file Saturation.h.

◆ OutputMode

template<typename SampleType >

enum class dspark::Saturation::OutputMode

strong

Determines the final output signal routing.

Enumerator
Normal
WetOnly
Delta

Definition at line 638 of file Saturation.h.

◆ ProcessingMode

template<typename SampleType >

enum class dspark::Saturation::ProcessingMode

strong

Determines how the stereo field is processed.

Enumerator
Stereo
MidOnly
SideOnly
MidSide

Definition at line 635 of file Saturation.h.

Constructor & Destructor Documentation

◆ Saturation() [1/2]

template<typename SampleType >

dspark::Saturation< SampleType >::Saturation ( )

inline

Definition at line 642 of file Saturation.h.

◆ ~Saturation()

template<typename SampleType >

dspark::Saturation< SampleType >::~Saturation ( )

default

◆ Saturation() [2/2]

template<typename SampleType >

dspark::Saturation< SampleType >::Saturation ( const Saturation< SampleType > & )

delete

Member Function Documentation

◆ applyAdaptiveBlend()

template<typename SampleType >

void dspark::Saturation< SampleType >::applyAdaptiveBlend ( AudioBufferView< SampleType > buffer )

inlineprotectednoexcept

Program-dependent dry/wet density blend (base rate, L/R domain). The dry reference is the DryWetMixer capture, which carries the same latency compensation as the wet path - no comb filtering.

Definition at line 1469 of file Saturation.h.

◆ applyOutputGain()

template<typename SampleType >

void dspark::Saturation< SampleType >::applyOutputGain ( AudioBufferView< SampleType > buffer )

inlineprotectednoexcept

Definition at line 1534 of file Saturation.h.

◆ applyParamSnapshot()

template<typename SampleType >

void dspark::Saturation< SampleType >::applyParamSnapshot ( const Params & p )

inlineprotected

Definition at line 1275 of file Saturation.h.

◆ dispatchSaturator()

template<typename SampleType >

void dspark::Saturation< SampleType >::dispatchSaturator	(	detail::SaturationAlgorithm< SampleType > *	baseAlgo,
		AudioBufferView< SampleType >	buffer,
		bool	useDrift
	)

inlineprotectednoexcept

Definition at line 1493 of file Saturation.h.

◆ getCurrentAlgorithm()

template<typename SampleType >

Algorithm dspark::Saturation< SampleType >::getCurrentAlgorithm ( ) const

inlinenoexcept

Retrieves the currently active underlying algorithm.

Note: Real-Time Safe reading via relaxed atomics.

Returns: The active Algorithm enum.

Definition at line 1128 of file Saturation.h.

◆ getGainReductionDb()

template<typename SampleType >

SampleType dspark::Saturation< SampleType >::getGainReductionDb ( ) const

inlinenoexcept

Calculates the peak gain reduction (clipping amount) for metering.

Note: Real-Time Safe reading via relaxed atomics.

Returns: Gain reduction in decibels (always <= 0.0).

Definition at line 1135 of file Saturation.h.

◆ getLatency()

template<typename SampleType >

int dspark::Saturation< SampleType >::getLatency ( ) const

inlinenoexcept

Reports the processor's algorithmic latency in samples.

Note: Equals the oversampler group delay (0 when oversampling is off). Report this to the host for plugin delay compensation (PDC).

Definition at line 1115 of file Saturation.h.

◆ getLatencySamples()

template<typename SampleType >

int dspark::Saturation< SampleType >::getLatencySamples ( ) const

inlinenoexcept

Compatibility alias of getLatency(), in prepared-rate samples.

Definition at line 1121 of file Saturation.h.

◆ getOversamplingFactor()

template<typename SampleType >

int dspark::Saturation< SampleType >::getOversamplingFactor ( ) const

inlinenoexcept

Retrieves the current oversampling factor.

Returns: Multiplier (1, 2, 4, 8, 16).

Definition at line 1108 of file Saturation.h.

◆ getState()

template<typename SampleType >

std::vector< uint8_t > dspark::Saturation< SampleType >::getState ( ) const

inline

Serializes the parameter state (setup/UI threads; allocates).

Definition at line 1139 of file Saturation.h.

◆ handleParameterChanges()

template<typename SampleType >

void dspark::Saturation< SampleType >::handleParameterChanges ( )

inlineprotected

Definition at line 1257 of file Saturation.h.

◆ operator=()

template<typename SampleType >

Saturation & dspark::Saturation< SampleType >::operator= ( const Saturation< SampleType > & )

delete

◆ prepare()

template<typename SampleType >

void dspark::Saturation< SampleType >::prepare ( const AudioSpec & spec )

inline

Prepares all internal resources, filters, and buffers.

Note: NOT Real-Time Safe. This method performs memory allocations (std::vector::resize) and filter coefficient calculations. It must be called from the main/setup thread before audio processing begins.

Parameters

spec	The audio environment specifications (sample rate, max block size, channels). An invalid spec (non-positive or NaN fields) is ignored and the previous state is kept.

Definition at line 674 of file Saturation.h.

◆ process()

template<typename SampleType >

void dspark::Saturation< SampleType >::process ( AudioBufferView< SampleType > buffer )

inlinenoexcept

Compatibility alias of processBlock(), with the same thread and preparation contract. Prefer processBlock() in new code.

Parameters

buffer Mutable view of the audio data.

Definition at line 781 of file Saturation.h.

◆ processBlock()

template<typename SampleType >

void dspark::Saturation< SampleType >::processBlock ( AudioBufferView< SampleType > buffer )

inlinenoexcept

Processes an audio block in-place (AudioProcessor standard contract).

Executes the following sequence: parameter updates (lock-free) -> Mid/Side Encoding -> Pre-filtering -> Slew detection -> Drift generation -> Saturation -> Adaptive Blend -> Mid/Side Decoding -> Post-filtering -> DC Blocking -> Dry/Wet Mix.

Note: Real-Time Safe. Call this inside your audio callback.; Pass-through until prepare() succeeds.

Parameters

buffer Mutable view of the audio data. Will be modified in-place.

Definition at line 795 of file Saturation.h.

◆ processCore()

template<typename SampleType >

template<typename ExactAlgo >

void dspark::Saturation< SampleType >::processCore	(	ExactAlgo *	algo,
		AudioBufferView< SampleType >	buffer,
		bool	useDrift
	)

inlineprotectednoexcept

Definition at line 1512 of file Saturation.h.

◆ processSaturationPipeline()

template<typename SampleType >

void dspark::Saturation< SampleType >::processSaturationPipeline ( AudioBufferView< SampleType > buffer )

inlineprotectednoexcept

Definition at line 1340 of file Saturation.h.

◆ pushParam()

template<typename SampleType >

template<typename Fn >

void dspark::Saturation< SampleType >::pushParam ( Fn && mutate )

inlineprotected

Definition at line 1241 of file Saturation.h.

◆ reset()

template<typename SampleType >

void dspark::Saturation< SampleType >::reset ( )

inlinenoexcept

Clears all internal states, phase memory, and history buffers.

Note: Real-Time Safe. Can be called safely from the audio thread to prevent clicks when the transport stops or loops.

Definition at line 739 of file Saturation.h.

◆ sanitizeParams()

template<typename SampleType >

static void dspark::Saturation< SampleType >::sanitizeParams	(	Params &	p,
		const Params &	prev
	)

inlinestaticprotectednoexcept

Keeps every snapshot the audio thread can ever see well-formed: NaN/Inf from the GUI reverts to the previous value (setter-with-NaN == ignored, the framework-wide policy - without this the smoothers and filter designs are poisoned permanently), and enum fields are clamped so a cast-from-int caller or a corrupt state blob can never index outside pool_. Also keeps lastParams_ finite for getState().

Definition at line 1215 of file Saturation.h.

◆ setAdaptiveBlend()

template<typename SampleType >

void dspark::Saturation< SampleType >::setAdaptiveBlend ( bool on )

inlinenoexcept

Enables program-dependent saturation density.

Note: Thread-Safe. Uses memory_order_relaxed atomic assignment.

Parameters

on	True to enable adaptive dynamic blending.

Definition at line 1013 of file Saturation.h.

◆ setAlgorithm()

template<typename SampleType >

void dspark::Saturation< SampleType >::setAlgorithm ( Algorithm algo )

inline

Sets the saturation algorithm topology.

Note: Thread-Safe. Changes are crossfaded internally over 10ms to prevent clicks.

Parameters

algo	The desired algorithm (e.g., Algorithm::Tube).

Definition at line 936 of file Saturation.h.

◆ setAnalogDrift()

template<typename SampleType >

void dspark::Saturation< SampleType >::setAnalogDrift ( SampleType i )

inline

Injects true-stereo pseudo-random low-frequency modulation (drift) into the saturation drive.

Note: Thread-Safe. Smoothed internally over 500ms.

Parameters

i	Intensity of the drift. Range: [0.0, 1.0].

Definition at line 985 of file Saturation.h.

◆ setAntialiasing()

template<typename SampleType >

void dspark::Saturation< SampleType >::setAntialiasing ( bool on )

inlinenoexcept

Enables antiderivative anti-aliasing (ADAA) on the memoryless curves (SoftClip / Tube / HardClip), which suppresses the aliasing the nonlinearity generates. Best combined with oversampling (ADAA + OS is the cleanest, per Parker/Zavalishin DAFx-16 and Bilbao et al. 2017). Off by default.

Note: Thread-Safe.; First-order ADAA shifts the wet signal by half a sample. With a partial dry/wet mix this causes a very slight HF comb (< 0.2 dB below 10 kHz at 48 kHz) - inherent to the technique and far smaller than the aliasing it removes.

Definition at line 1026 of file Saturation.h.

◆ setCharacter()

template<typename SampleType >

void dspark::Saturation< SampleType >::setCharacter ( SampleType c )

inline

Adjusts the specific character/bias of the selected algorithm.

Behavior varies per algorithm:

Tube: Controls waveform asymmetry.
Tape: Controls the magnetic coupling (knee hardness and mid-level bloom).
Transformer: Adjusts bias voltage.
Wavefolder: Biases the fold point (asymmetry, even harmonics).

Note: Thread-Safe. Smoothed internally over 20ms.

Parameters

c	Character amount. Range: [-1.0, 1.0]. 0.0 represents the neutral state.

Definition at line 964 of file Saturation.h.

◆ setDcBlocking()

template<typename SampleType >

void dspark::Saturation< SampleType >::setDcBlocking ( bool on )

inline

Enables or disables the fixed 10Hz DC Blocker.

Note: Thread-Safe.

Parameters

on	True to enable DC blocking (default).

Definition at line 1006 of file Saturation.h.

◆ setDrive()

template<typename SampleType >

void dspark::Saturation< SampleType >::setDrive ( SampleType dB )

inline

Sets the input drive gain.

Note: Thread-Safe. Smoothed internally over 20ms.

Parameters

dB	Drive level in decibels. Range: [-24.0, +48.0]. 0 dB = unity gain.

Definition at line 943 of file Saturation.h.

◆ setMix()

template<typename SampleType >

void dspark::Saturation< SampleType >::setMix ( SampleType mix01 )

inline

Sets the global Dry/Wet blend.

Note: Thread-Safe. Smoothed internally over 20ms.

Parameters

mix01 Mix ratio. Range: [0.0 (fully dry), 1.0 (fully wet)].

Definition at line 950 of file Saturation.h.

◆ setOutputGain()

template<typename SampleType >

void dspark::Saturation< SampleType >::setOutputGain ( SampleType dB )

inline

Sets the post-saturation make-up or trim gain.

Note: Thread-Safe. Smoothed internally over 20ms.

Parameters

dB	Gain in decibels.

Definition at line 999 of file Saturation.h.

◆ setOutputMode()

template<typename SampleType >

void dspark::Saturation< SampleType >::setOutputMode ( OutputMode m )

inline

Sets the output signal path.

Note: Thread-Safe.

Parameters

m	The output mode (Normal, WetOnly, Delta). Delta mode outputs ONLY the generated harmonics.

Definition at line 978 of file Saturation.h.

◆ setOversampling()

template<typename SampleType >

void dspark::Saturation< SampleType >::setOversampling ( int factor )

inline

Configures internal polyphase oversampling to reduce aliasing.

Note: NOT Real-Time Safe. Must be called before prepare(), or prepare() must be called immediately after.

Parameters

factor The oversampling multiplier. Must be a power of 2 (1, 2, 4, 8, 16). 1 = Off. Default 2: at 1x the curves fold their harmonics back into the band - a 10.1 kHz tone at -6 dBFS through the default SoftClip left an alias at 17.7 kHz only 34 dB down (46 dB with ADAA); at 2x it measures 124 dB down, for the oversampler's latency (64 samples at 48 kHz, reported by getLatency()).

Definition at line 1073 of file Saturation.h.

◆ setPostFilterTilt()

template<typename SampleType >

void dspark::Saturation< SampleType >::setPostFilterTilt	(	SampleType	centerHz,
		SampleType	amountDb
	)

inline

Configures a post-saturation first-order tilt EQ.

Tilts the spectrum around the pivot: -amountDb/2 at DC, unity at the pivot, +amountDb/2 at Nyquist (total span = amountDb). Positive values brighten the signal; negative values darken it.

Note: Thread-Safe. Both parameters smoothed internally over 30ms.

Parameters

centerHz	Pivot frequency in Hertz. Range: [100.0, Nyquist].
amountDb	Total tilt span in decibels. Range: [-12.0, 12.0].

Definition at line 1055 of file Saturation.h.

◆ setPreFilterHpFrequency()

template<typename SampleType >

void dspark::Saturation< SampleType >::setPreFilterHpFrequency ( SampleType hz )

inline

Configures a pre-saturation high-pass filter.

Note: Thread-Safe. Smoothed internally over 30ms.

Parameters

hz	Cutoff frequency in Hertz. Range: [10.0, Nyquist].

Definition at line 992 of file Saturation.h.

◆ setProcessingMode()

template<typename SampleType >

void dspark::Saturation< SampleType >::setProcessingMode ( ProcessingMode m )

inline

Sets the routing configuration for multi-channel processing.

Note: Thread-Safe. Applies instantly on the next block.

Parameters

m	The processing mode (Stereo, MidOnly, SideOnly, MidSide).

Definition at line 971 of file Saturation.h.

◆ setSlewSensitivity()

template<typename SampleType >

void dspark::Saturation< SampleType >::setSlewSensitivity ( SampleType amount )

inlinenoexcept

Sets a derivative-based (slew rate) saturation multiplier.

Note: Thread-Safe. Uses memory_order_relaxed atomic assignment. Non-finite values are ignored.

Parameters

amount Sensitivity multiplier. Range: [0.0 (off), 1.0 (max)].

Definition at line 1038 of file Saturation.h.

◆ setState()

template<typename SampleType >

bool dspark::Saturation< SampleType >::setState	(	const uint8_t *	data,
		size_t	size
	)

inline

Restores parameters from a blob (setup/UI threads: it forwards the stored oversampling factor to setOversampling, which may allocate). Out-of-range enum values from foreign or corrupt blobs are clamped.

Definition at line 1169 of file Saturation.h.

Member Data Documentation

◆ active_

template<typename SampleType >

std::atomic<detail::SaturationAlgorithm<SampleType>*> dspark::Saturation< SampleType >::active_ { nullptr }

protected

Definition at line 1558 of file Saturation.h.

◆ adaptiveBlend_

template<typename SampleType >

std::atomic<bool> dspark::Saturation< SampleType >::adaptiveBlend_ { false }

protected

Definition at line 1596 of file Saturation.h.

◆ antialiasShadow_

template<typename SampleType >

std::atomic<bool> dspark::Saturation< SampleType >::antialiasShadow_ { false }

protected

Mirror for getState.

Definition at line 1565 of file Saturation.h.

◆ characterSmoother_

template<typename SampleType >

Smoothers::LinearSmoother dspark::Saturation< SampleType >::characterSmoother_

protected

Definition at line 1573 of file Saturation.h.

◆ crossfader_

template<typename SampleType >

Smoothers::LinearSmoother dspark::Saturation< SampleType >::crossfader_

protected

Definition at line 1575 of file Saturation.h.

◆ currentAlgoType_

template<typename SampleType >

std::atomic<Algorithm> dspark::Saturation< SampleType >::currentAlgoType_ { Algorithm::SoftClip }

protected

Definition at line 1570 of file Saturation.h.

◆ dcBlocker_

template<typename SampleType >

DCBlocker<SampleType> dspark::Saturation< SampleType >::dcBlocker_

protected

Definition at line 1582 of file Saturation.h.

◆ dcBlockingEnabled_

template<typename SampleType >

bool dspark::Saturation< SampleType >::dcBlockingEnabled_ = true

protected

Definition at line 1569 of file Saturation.h.

◆ driftBuffer_

template<typename SampleType >

AudioBuffer<SampleType> dspark::Saturation< SampleType >::driftBuffer_

protected

Definition at line 1588 of file Saturation.h.

◆ driftSmoother_

template<typename SampleType >

Smoothers::LinearSmoother dspark::Saturation< SampleType >::driftSmoother_

protected

Definition at line 1573 of file Saturation.h.

◆ driveSmoother_

template<typename SampleType >

Smoothers::StateVariableSmoother dspark::Saturation< SampleType >::driveSmoother_

protected

Definition at line 1572 of file Saturation.h.

◆ dryWetMixer_

template<typename SampleType >

DryWetMixer<SampleType> dspark::Saturation< SampleType >::dryWetMixer_

protected

Definition at line 1583 of file Saturation.h.

◆ gainReductionDb_

template<typename SampleType >

std::atomic<SampleType> dspark::Saturation< SampleType >::gainReductionDb_ { SampleType(0) }

protected

Definition at line 1594 of file Saturation.h.

◆ kMaxCh

template<typename SampleType >

constexpr int dspark::Saturation< SampleType >::kMaxCh = 16

staticconstexprprotected

Definition at line 1597 of file Saturation.h.

◆ kNumAlgorithms

template<typename SampleType >

constexpr int dspark::Saturation< SampleType >::kNumAlgorithms = 10

staticconstexprprotected

Definition at line 1556 of file Saturation.h.

◆ lastParams_

template<typename SampleType >

Params dspark::Saturation< SampleType >::lastParams_

protected

Definition at line 1562 of file Saturation.h.

◆ lastPostTiltFreq_

template<typename SampleType >

float dspark::Saturation< SampleType >::lastPostTiltFreq_ = -1.0f

protected

Definition at line 1604 of file Saturation.h.

◆ lastPostTiltGain_

template<typename SampleType >

float dspark::Saturation< SampleType >::lastPostTiltGain_ = std::numeric_limits<float>::quiet_NaN()

protected

Definition at line 1605 of file Saturation.h.

◆ lastPreHpFreq_

template<typename SampleType >

float dspark::Saturation< SampleType >::lastPreHpFreq_ = -1.0f

protected

Definition at line 1603 of file Saturation.h.

◆ leftDrift_

template<typename SampleType >

AnalogRandom::Generator<SampleType> dspark::Saturation< SampleType >::leftDrift_

protected

Definition at line 1585 of file Saturation.h.

◆ mixSmoother_

template<typename SampleType >

Smoothers::LinearSmoother dspark::Saturation< SampleType >::mixSmoother_

protected

Definition at line 1573 of file Saturation.h.

◆ msKeepBuffer_

template<typename SampleType >

AudioBuffer<SampleType> dspark::Saturation< SampleType >::msKeepBuffer_

protected

MidOnly/SideOnly channel snapshot.

Definition at line 1589 of file Saturation.h.

◆ next_

template<typename SampleType >

std::atomic<detail::SaturationAlgorithm<SampleType>*> dspark::Saturation< SampleType >::next_ { nullptr }

protected

Definition at line 1559 of file Saturation.h.

◆ outputGainSmoother_

template<typename SampleType >

Smoothers::LinearSmoother dspark::Saturation< SampleType >::outputGainSmoother_

protected

Definition at line 1574 of file Saturation.h.

◆ outputMode_

template<typename SampleType >

OutputMode dspark::Saturation< SampleType >::outputMode_ = OutputMode::Normal

protected

Definition at line 1568 of file Saturation.h.

◆ oversampler_

template<typename SampleType >

std::unique_ptr<Oversampling<SampleType> > dspark::Saturation< SampleType >::oversampler_

protected

Definition at line 1591 of file Saturation.h.

◆ oversamplingFactor_

template<typename SampleType >

int dspark::Saturation< SampleType >::oversamplingFactor_ = 2

protected

2x by default: the curves alias at 1x (see setOversampling()).

Definition at line 1592 of file Saturation.h.

◆ paramQueue_

template<typename SampleType >

SpscQueue<Params> dspark::Saturation< SampleType >::paramQueue_

protected

Definition at line 1561 of file Saturation.h.

◆ paramsLock_

template<typename SampleType >

SpinLock dspark::Saturation< SampleType >::paramsLock_

mutableprotected

Definition at line 1563 of file Saturation.h.

◆ paramsPending_

template<typename SampleType >

std::atomic<bool> dspark::Saturation< SampleType >::paramsPending_ { false }

protected

Definition at line 1564 of file Saturation.h.

◆ pool_

template<typename SampleType >

std::array<std::unique_ptr<detail::SaturationAlgorithm<SampleType> >, kNumAlgorithms> dspark::Saturation< SampleType >::pool_

protected

Definition at line 1557 of file Saturation.h.

◆ postFilter_

template<typename SampleType >

Biquad<SampleType> dspark::Saturation< SampleType >::postFilter_

protected

Definition at line 1577 of file Saturation.h.

◆ postTiltFreqSmoother_

template<typename SampleType >

Smoothers::StateVariableSmoother dspark::Saturation< SampleType >::postTiltFreqSmoother_

protected

Definition at line 1572 of file Saturation.h.

◆ postTiltGainSmoother_

template<typename SampleType >

Smoothers::LinearSmoother dspark::Saturation< SampleType >::postTiltGainSmoother_

protected

Definition at line 1574 of file Saturation.h.

◆ preFilter_

template<typename SampleType >

Biquad<SampleType> dspark::Saturation< SampleType >::preFilter_

protected

Definition at line 1577 of file Saturation.h.

◆ preHpSmoother_

template<typename SampleType >

Smoothers::StateVariableSmoother dspark::Saturation< SampleType >::preHpSmoother_

protected

Definition at line 1572 of file Saturation.h.

◆ prepared_

template<typename SampleType >

bool dspark::Saturation< SampleType >::prepared_ = false

protected

Definition at line 1554 of file Saturation.h.

◆ prevBlendSample_

template<typename SampleType >

std::array<SampleType, kMaxCh> dspark::Saturation< SampleType >::prevBlendSample_ {}

protected

Definition at line 1598 of file Saturation.h.

◆ prevSlewSample_

template<typename SampleType >

std::array<SampleType, kMaxCh> dspark::Saturation< SampleType >::prevSlewSample_ {}

protected

Definition at line 1601 of file Saturation.h.

◆ procMode_

template<typename SampleType >

ProcessingMode dspark::Saturation< SampleType >::procMode_ = ProcessingMode::Stereo

protected

Definition at line 1567 of file Saturation.h.

◆ rightDrift_

template<typename SampleType >

AnalogRandom::Generator<SampleType> dspark::Saturation< SampleType >::rightDrift_

protected

Definition at line 1585 of file Saturation.h.

◆ slewSensitivity_

template<typename SampleType >

std::atomic<SampleType> dspark::Saturation< SampleType >::slewSensitivity_ { SampleType(0) }

protected

Definition at line 1600 of file Saturation.h.

◆ spec_

template<typename SampleType >

AudioSpec dspark::Saturation< SampleType >::spec_ {}

protected

Definition at line 1553 of file Saturation.h.

◆ tempBuffer_

template<typename SampleType >

AudioBuffer<SampleType> dspark::Saturation< SampleType >::tempBuffer_

protected

Definition at line 1587 of file Saturation.h.

The documentation for this class was generated from the following file:

Saturation.h

Classes

Public Types

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ Algorithm

◆ OutputMode

◆ ProcessingMode

Constructor & Destructor Documentation

◆ Saturation() [1/2]

◆ ~Saturation()

◆ Saturation() [2/2]

Member Function Documentation

◆ applyAdaptiveBlend()

◆ applyOutputGain()

◆ applyParamSnapshot()

◆ dispatchSaturator()

◆ getCurrentAlgorithm()

◆ getGainReductionDb()

◆ getLatency()

◆ getLatencySamples()

◆ getOversamplingFactor()

◆ getState()

◆ handleParameterChanges()

◆ operator=()

◆ prepare()

◆ process()

◆ processBlock()

◆ processCore()

◆ processSaturationPipeline()

◆ pushParam()

◆ reset()

◆ sanitizeParams()

◆ setAdaptiveBlend()

◆ setAlgorithm()

◆ setAnalogDrift()

◆ setAntialiasing()

◆ setCharacter()

◆ setDcBlocking()

◆ setDrive()

◆ setMix()

◆ setOutputGain()

◆ setOutputMode()

◆ setOversampling()

◆ setPostFilterTilt()

◆ setPreFilterHpFrequency()

◆ setProcessingMode()

◆ setSlewSensitivity()

◆ setState()

Member Data Documentation

◆ active_

◆ adaptiveBlend_

◆ antialiasShadow_

◆ characterSmoother_

◆ crossfader_

◆ currentAlgoType_

◆ dcBlocker_

◆ dcBlockingEnabled_

◆ driftBuffer_

◆ driftSmoother_

◆ driveSmoother_

◆ dryWetMixer_

◆ gainReductionDb_

◆ kMaxCh

◆ kNumAlgorithms

◆ lastParams_

◆ lastPostTiltFreq_

◆ lastPostTiltGain_

◆ lastPreHpFreq_

◆ leftDrift_

◆ mixSmoother_

◆ msKeepBuffer_

◆ next_

◆ outputGainSmoother_

◆ outputMode_

◆ oversampler_
