dspark::Panner< T > Class Template Reference

#include <Panner.h>

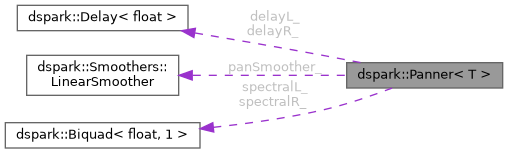

Collaboration diagram for dspark::Panner< T >:
Collaboration graph
[legend]

Public Types

enum class  Algorithm {
  EqualPower , Binaural , MidPan , SidePan ,
  Haas , Spectral
}
 Available panning algorithms. More...


Public Member Functions

 ~Panner ()=default

void prepare (const AudioSpec &spec)
 Initializes internal delays, filters, and smoothers.

void setAlgorithm (Algorithm algo) noexcept
 Sets the active panning algorithm safely from any thread.

void setPan (T position) noexcept
 Sets the target pan position (automatable, smoothed).

void processBlock (AudioBufferView< T > buffer) noexcept
 Processes an audio block in-place. Real-time safe.

void reset () noexcept
 Clears delay lines and filter states to prevent ghost echoes.

void setBinauralMaxITD (float ms) noexcept

void setHaasMaxDelay (float ms) noexcept

void setSpectralFrequency (float hz) noexcept

void setSpectralMaxGain (float dB) noexcept

void setSmoothingTime (float ms) noexcept
 Sets the pan smoothing time: a change settles (to 96%) in this many ms along a critically damped curve. Thread-safe; applied at the top of the next processBlock().

std::vector< uint8_t > getState () const
 Serializes the parameter state (setup/UI threads; allocates).

bool setState (const uint8_t *data, size_t size)
 Restores parameters from a blob (tolerant; rejects foreign ids).


Protected Member Functions

void applyEqualPower (AudioBufferView< T > buffer, float) noexcept

void applyCombinedBinaural (AudioBufferView< T > buffer, float panTarget) noexcept

void applyMidPan (AudioBufferView< T > buffer, float) noexcept

void applySidePan (AudioBufferView< T > buffer, float) noexcept

void applyHaas (AudioBufferView< T > buffer, float panTarget) noexcept

void applySpectral (AudioBufferView< T > buffer, float) noexcept

void updateSpectralFilters (T targetPan) noexcept


Static Protected Member Functions

static float panTimeConstantMs (float smoothingMs) noexcept


Protected Attributes

double sampleRate_ = 48000.0

std::atomic< Algorithm > algorithm_ { Algorithm::EqualPower }

std::atomic< T > pan_ { T(0) }

Delay< T > delayL_

Delay< T > delayR_

Smoothers::CriticallyDampedSmoother panSmoother_

Biquad< T, 1 > spectralL_

Biquad< T, 1 > spectralR_

std::atomic< float > smoothingTime_ { 50.0f }

std::atomic< bool > smoothingDirty_ { false }
 Pan smoother re-config pending.

std::atomic< float > binauralMaxITD_ { 0.66f }

std::atomic< float > haasMaxDelay_ { 30.0f }

std::atomic< float > spectralFreq_ { 4000.0f }

std::atomic< float > spectralMaxGain_ { 6.0f }

float spectralPan_ = std::numeric_limits<float>::quiet_NaN()

float spectralFreqUsed_ = 0.0f

float spectralGainUsed_ = 0.0f


Detailed Description

template<typename T = float>
class dspark::Panner< T >

Definition at line 50 of file Panner.h.

Member Enumeration Documentation

◆ Algorithm

template<typename T = float>
enum class dspark::Panner::Algorithm
strong

Available panning algorithms.

Enumerator
EqualPower

Standard -3 dB constant-power pan.

Binaural

Cross-feeding + ITD delay.

MidPan

Pans only the centre (mid) image.

SidePan

Pans only the stereo (side) image.

Haas

Precedence effect via inter-channel delay.

Spectral

Frequency-dependent panning via high-shelf.

Definition at line 57 of file Panner.h.

Constructor & Destructor Documentation

◆ ~Panner()

template<typename T = float>
dspark::Panner< T >::~Panner ( )
default

Member Function Documentation

◆ applyCombinedBinaural()

template<typename T = float>
void dspark::Panner< T >::applyCombinedBinaural ( AudioBufferView< T >  buffer,
float  panTarget
)
inlineprotectednoexcept

Definition at line 285 of file Panner.h.

◆ applyEqualPower()

template<typename T = float>
void dspark::Panner< T >::applyEqualPower ( AudioBufferView< T >  buffer,
float
)
inlineprotectednoexcept

Definition at line 253 of file Panner.h.

◆ applyHaas()

template<typename T = float>
void dspark::Panner< T >::applyHaas ( AudioBufferView< T >  buffer,
float  panTarget
)
inlineprotectednoexcept

Definition at line 394 of file Panner.h.

◆ applyMidPan()

template<typename T = float>
void dspark::Panner< T >::applyMidPan ( AudioBufferView< T >  buffer,
float
)
inlineprotectednoexcept

Definition at line 342 of file Panner.h.

◆ applySidePan()

template<typename T = float>
void dspark::Panner< T >::applySidePan ( AudioBufferView< T >  buffer,
float
)
inlineprotectednoexcept

Definition at line 369 of file Panner.h.

◆ applySpectral()

template<typename T = float>
void dspark::Panner< T >::applySpectral ( AudioBufferView< T >  buffer,
float
)
inlineprotectednoexcept

Definition at line 423 of file Panner.h.

◆ getState()

template<typename T = float>
std::vector< uint8_t > dspark::Panner< T >::getState ( ) const
inline

Serializes the parameter state (setup/UI threads; allocates).

Definition at line 224 of file Panner.h.

◆ panTimeConstantMs()

template<typename T = float>
static float dspark::Panner< T >::panTimeConstantMs ( float  smoothingMs)
inlinestaticprotectednoexcept

Time constant of the critically damped smoother for a smoothing time: 1 - (1 + t/tau) e^(-t/tau) reaches 96% at t = 5 tau.

Definition at line 483 of file Panner.h.

◆ prepare()

template<typename T = float>
void dspark::Panner< T >::prepare ( const AudioSpec &  spec)
inline

Initializes internal delays, filters, and smoothers.

Parameters
specThe audio specification (sample rate, block size). An invalid spec (non-positive or NaN fields) is ignored.

Definition at line 72 of file Panner.h.

◆ processBlock()

template<typename T = float>
void dspark::Panner< T >::processBlock ( AudioBufferView< T >  buffer)
inlinenoexcept

Processes an audio block in-place. Real-time safe.

Parameters
bufferStereo audio buffer. Modifies the data directly. Buffers with fewer than 2 channels are left untouched.

Definition at line 135 of file Panner.h.

◆ reset()

template<typename T = float>
void dspark::Panner< T >::reset ( )
inlinenoexcept

Clears delay lines and filter states to prevent ghost echoes.

Definition at line 175 of file Panner.h.

◆ setAlgorithm()

template<typename T = float>
void dspark::Panner< T >::setAlgorithm ( Algorithm  algo)
inlinenoexcept

Sets the active panning algorithm safely from any thread.

Note
Switching is instant (no crossfade). The delay lines and spectral filters keep their state across switches; call reset() if a stale tail from the previous algorithm would be audible.
Parameters
algoThe algorithm enum to use. Out-of-range values are clamped.

Definition at line 109 of file Panner.h.

◆ setBinauralMaxITD()

template<typename T = float>
void dspark::Panner< T >::setBinauralMaxITD ( float  ms)
inlinenoexcept

Definition at line 189 of file Panner.h.

◆ setHaasMaxDelay()

template<typename T = float>
void dspark::Panner< T >::setHaasMaxDelay ( float  ms)
inlinenoexcept

Definition at line 194 of file Panner.h.

◆ setPan()

template<typename T = float>
void dspark::Panner< T >::setPan ( T  position)
inlinenoexcept

Sets the target pan position (automatable, smoothed).

Parameters
positionTarget pan from -1.0 (left) to +1.0 (right). Non-finite values are ignored.

Definition at line 121 of file Panner.h.

◆ setSmoothingTime()

template<typename T = float>
void dspark::Panner< T >::setSmoothingTime ( float  ms)
inlinenoexcept

Sets the pan smoothing time: a change settles (to 96%) in this many ms along a critically damped curve. Thread-safe; applied at the top of the next processBlock().

Definition at line 213 of file Panner.h.

◆ setSpectralFrequency()

template<typename T = float>
void dspark::Panner< T >::setSpectralFrequency ( float  hz)
inlinenoexcept

Definition at line 199 of file Panner.h.

◆ setSpectralMaxGain()

template<typename T = float>
void dspark::Panner< T >::setSpectralMaxGain ( float  dB)
inlinenoexcept

Definition at line 204 of file Panner.h.

◆ setState()

template<typename T = float>
bool dspark::Panner< T >::setState ( const uint8_t *  data,
size_t  size
)
inline

Restores parameters from a blob (tolerant; rejects foreign ids).

Definition at line 238 of file Panner.h.

◆ updateSpectralFilters()

template<typename T = float>
void dspark::Panner< T >::updateSpectralFilters ( T  targetPan)
inlineprotectednoexcept

Definition at line 449 of file Panner.h.

Member Data Documentation

◆ algorithm_

template<typename T = float>
std::atomic<Algorithm> dspark::Panner< T >::algorithm_ { Algorithm::EqualPower }
protected

Definition at line 472 of file Panner.h.

◆ binauralMaxITD_

template<typename T = float>
std::atomic<float> dspark::Panner< T >::binauralMaxITD_ { 0.66f }
protected

Definition at line 488 of file Panner.h.

◆ delayL_

template<typename T = float>
Delay<T> dspark::Panner< T >::delayL_
protected

Definition at line 475 of file Panner.h.

◆ delayR_

template<typename T = float>
Delay<T> dspark::Panner< T >::delayR_
protected

Definition at line 475 of file Panner.h.

◆ haasMaxDelay_

template<typename T = float>
std::atomic<float> dspark::Panner< T >::haasMaxDelay_ { 30.0f }
protected

Definition at line 489 of file Panner.h.

◆ pan_

template<typename T = float>
std::atomic<T> dspark::Panner< T >::pan_ { T(0) }
protected

Definition at line 473 of file Panner.h.

◆ panSmoother_

template<typename T = float>
Smoothers::CriticallyDampedSmoother dspark::Panner< T >::panSmoother_
protected

Definition at line 480 of file Panner.h.

◆ sampleRate_

template<typename T = float>
double dspark::Panner< T >::sampleRate_ = 48000.0
protected

Definition at line 471 of file Panner.h.

◆ smoothingDirty_

template<typename T = float>
std::atomic<bool> dspark::Panner< T >::smoothingDirty_ { false }
protected

Pan smoother re-config pending.

Definition at line 487 of file Panner.h.

◆ smoothingTime_

template<typename T = float>
std::atomic<float> dspark::Panner< T >::smoothingTime_ { 50.0f }
protected

Definition at line 486 of file Panner.h.

◆ spectralFreq_

template<typename T = float>
std::atomic<float> dspark::Panner< T >::spectralFreq_ { 4000.0f }
protected

Definition at line 490 of file Panner.h.

◆ spectralFreqUsed_

template<typename T = float>
float dspark::Panner< T >::spectralFreqUsed_ = 0.0f
protected

Definition at line 495 of file Panner.h.

◆ spectralGainUsed_

template<typename T = float>
float dspark::Panner< T >::spectralGainUsed_ = 0.0f
protected

Definition at line 496 of file Panner.h.

◆ spectralL_

template<typename T = float>
Biquad<T, 1> dspark::Panner< T >::spectralL_
protected

Definition at line 484 of file Panner.h.

◆ spectralMaxGain_

template<typename T = float>
std::atomic<float> dspark::Panner< T >::spectralMaxGain_ { 6.0f }
protected

Definition at line 491 of file Panner.h.

◆ spectralPan_

template<typename T = float>
float dspark::Panner< T >::spectralPan_ = std::numeric_limits<float>::quiet_NaN()
protected

Definition at line 494 of file Panner.h.

◆ spectralR_

template<typename T = float>
Biquad<T, 1> dspark::Panner< T >::spectralR_
protected

Definition at line 484 of file Panner.h.

The documentation for this class was generated from the following file:
