High-performance brickwall lookahead limiter. More...

#include <Limiter.h>

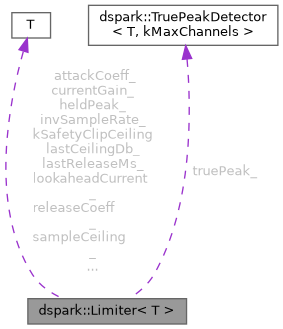

Collaboration diagram for dspark::Limiter< T >:

Public Member Functions
	~Limiter ()=default

void	prepare (double sampleRate, int numChannels=2, double initialLookaheadMs=-1.0)
	Allocates memory and prepares the limiter for processing.

void	prepare (const AudioSpec &spec)
	Prepares from AudioSpec (unified API).

void	processBlock (AudioBufferView< T > buffer) noexcept
	Processes an AudioBufferView in-place.

T	processSample (T input, int channel) noexcept
	Processes a single sample of one channel.

void	reset () noexcept
	Resets the internal state (delays, gain reduction). RT-Safe.

void	setCeiling (T dB) noexcept
	Sets the absolute output ceiling.

void	setRelease (T ms) noexcept
	Sets the base release time.

void	setLookahead (T ms) noexcept
	Sets the lookahead time dynamically.

void	setTruePeak (bool enabled) noexcept
	Enables 4x oversampled ISP true-peak detection. RT-Safe. The attack ramp shortens by the estimator's support (11 samples) so the reduction covers every sample a true-peak reading is formed from.

void	setAdaptiveRelease (bool enabled) noexcept
	Enables program-dependent adaptive release. RT-Safe.

void	setHold (T ms) noexcept
	Sets how long the reduction is held after the last peak that asked for it, before the release starts. RT-Safe.

T	getHold () const noexcept

void	setSafetyClip (bool enabled) noexcept
	Enables the post-limiter soft-knee safety clipper. RT-Safe.

bool	isTruePeakEnabled () const noexcept

bool	isAdaptiveReleaseEnabled () const noexcept

bool	isSafetyClipEnabled () const noexcept

T	getLookahead () const noexcept

int	getLatency () const noexcept
	Reports the processing latency (the lookahead) in samples.

T	getGainReductionDb () const noexcept
	Current gain reduction in dB (metering).

std::vector< uint8_t >	getState () const
	Serializes the parameter state (setup/UI threads; allocates).

bool	setState (const uint8_t *data, size_t size)
	Restores parameters from a blob (tolerant; rejects foreign ids).

Protected Member Functions
int	lookaheadSamplesFor (T ms) const noexcept

void	applyLookaheadTarget () noexcept

void	configureGainComputer () noexcept

DSPARK_NOINLINE void	resumBoxes () noexcept

DSPARK_NOINLINE void	restartHoldBlock (int64_t firstFrame) noexcept

void	resetGainComputer () noexcept

void	advanceGain (T peak, T ceiling, bool adaptive, T relMs) noexcept

void	syncParameters () noexcept

void	updateHoldSamples () noexcept

void	updateReleaseCoefficient () noexcept

T	applySafetyClipper (T out, T clipCeil) const noexcept

Protected Attributes
TruePeakDetector< T, kMaxChannels >	truePeak_

bool	prepared_ = false

double	sampleRate_ = 48000.0

T	invSampleRate_ = T(1.0 / 48000.0)

int	numChannels_ = 2

int	lookaheadSamples_ = 96
	Audio-side lookahead (consumed from lookaheadMs_).

int	maxLimitSamples_ = 96000
	Adaptive-release duration cap (2 s).

std::atomic< T >	ceilingDb_ { T(-0.3) }

std::atomic< T >	releaseMs_ { T(100) }

std::atomic< T >	holdMs_ { T(10) }

std::atomic< T >	lookaheadMs_ { T(2) }

std::atomic< bool >	lookaheadDirty_ { false }

std::atomic< bool >	truePeakEnabled_ { false }

std::atomic< bool >	adaptiveRelease_ { false }

std::atomic< bool >	safetyClipEnabled_ { false }

SmoothedValue< T >	ceilingSmooth_

T	lastCeilingDb_ = T(-0.3)
	Change detector for the ceiling pow skip.

T	releaseCoeff_ = T(0)

T	lastReleaseMs_ = T(-1)

T	lastHoldMs_ = T(-1)

int	holdSamples_ = 0
	Hold length in samples.

int	holdLeft_ = 0
	Hold samples left before the release may act.

T	currentGain_ = T(1)

std::atomic< T >	publishedGain_ { T(1) }

int	limitingDuration_ = 0

T	lookaheadCurrent_ = T(96)
	Smoothed read offset (glides on live changes).

int	histSize_ = 0

int	histMask_ = 0

std::vector< double >	eHist_
	Released envelope history.

std::vector< double >	avgHist_
	First moving-average output history.

std::vector< double >	rHist_
	Required-gain history.

std::vector< double >	sufMin_
	Suffix minima of the last complete hold block (+1 empty).

int	blockPos_ = 0
	Position inside the current hold block.

double	prefixMin_ = 1.0
	Running minimum of the current hold block.

int64_t	frame_ = 0

double	envelope_ = 1.0

double	sum1_ = 1.0

double	sum2_ = 1.0

int	boxA_ = 1

int	boxB_ = 1

double	invBoxA_ = 1.0

double	invBoxB_ = 1.0

int	holdLen_ = 97

int	sinceResum_ = 0

T	pendingPeak_ = T(0)
	Other channels' peaks for the next processSample() frame.

T	chunkPeak_ [kChunk] = {}

T	chunkCeiling_ [kChunk] = {}

T	chunkGain_ [kChunk] = {}

int	chunkLook_ [kChunk] = {}

T	sampleCeiling_ = T(0.96605)

int	sampleLookNow_ = 96

std::vector< RingBuffer< T > >	delayLines_

Static Protected Attributes
static constexpr int	kMaxChannels = 16

static constexpr double	kMaxLookaheadMs = 10.0

static constexpr T	kSafetyClipCeiling = T(0.96605)
	-0.3 dBFS

static constexpr int	kResumPeriod = 1 << 16

static constexpr int	kChunk = 128

Detailed Description

template<FloatType T>
class dspark::Limiter< T >

High-performance brickwall lookahead limiter.

Template Parameters

T	Sample type (float or double).

Definition at line 93 of file Limiter.h.

Constructor & Destructor Documentation

◆ ~Limiter()

template<FloatType T>

dspark::Limiter< T >::~Limiter ( )

default

Member Function Documentation

◆ advanceGain()

template<FloatType T>

void dspark::Limiter< T >::advanceGain	(	T	peak,
		T	ceiling,
		bool	adaptive,
		T	relMs
	)

inlineprotectednoexcept

One frame of the gain computer; leaves the gain to apply in currentGain_.

Definition at line 642 of file Limiter.h.

◆ applyLookaheadTarget()

template<FloatType T>

void dspark::Limiter< T >::applyLookaheadTarget ( )

inlineprotectednoexcept

Consumes the published lookahead parameter (audio/setup thread).

Definition at line 553 of file Limiter.h.

◆ applySafetyClipper()

template<FloatType T>

T dspark::Limiter< T >::applySafetyClipper	(	T	out,
		T	clipCeil
	)		const

inlineprotectednoexcept

Symmetric soft-knee clipper for the region above the clip threshold, with a hard backstop at 1.05x the threshold.

Definition at line 740 of file Limiter.h.

◆ configureGainComputer()

template<FloatType T>

void dspark::Limiter< T >::configureGainComputer ( )

inlineprotectednoexcept

Sizes the hold window and the two moving averages for the current lookahead / ISP mode and rebuilds their running sums from history.

Definition at line 572 of file Limiter.h.

◆ getGainReductionDb()

template<FloatType T>

T dspark::Limiter< T >::getGainReductionDb ( ) const

inlinenoexcept

Current gain reduction in dB (metering).

Safe from any thread: it loads a published atomic word, so off the audio thread it may be up to one block behind. It used to read currentGain_ directly – a plain word the audio thread writes every sample, read from another thread, which is a data race and not merely an approximate number.

Definition at line 498 of file Limiter.h.

◆ getHold()

template<FloatType T>

T dspark::Limiter< T >::getHold ( ) const

inlinenoexcept

Returns: The hold time in milliseconds.

Definition at line 462 of file Limiter.h.

◆ getLatency()

template<FloatType T>

int dspark::Limiter< T >::getLatency ( ) const

inlinenoexcept

Reports the processing latency (the lookahead) in samples.

Derived from the published lookahead parameter, so it is correct immediately after setLookahead() from any thread (the audio thread may consume the change one block later; the glide covers the transition).

Definition at line 486 of file Limiter.h.

◆ getLookahead()

template<FloatType T>

T dspark::Limiter< T >::getLookahead ( ) const

inlinenoexcept

Definition at line 477 of file Limiter.h.

◆ getState()

template<FloatType T>

std::vector< uint8_t > dspark::Limiter< T >::getState ( ) const

inline

Serializes the parameter state (setup/UI threads; allocates).

Definition at line 505 of file Limiter.h.

◆ isAdaptiveReleaseEnabled()

template<FloatType T>

bool dspark::Limiter< T >::isAdaptiveReleaseEnabled ( ) const

inlinenoexcept

Definition at line 475 of file Limiter.h.

◆ isSafetyClipEnabled()

template<FloatType T>

bool dspark::Limiter< T >::isSafetyClipEnabled ( ) const

inlinenoexcept

Definition at line 476 of file Limiter.h.

◆ isTruePeakEnabled()

template<FloatType T>

bool dspark::Limiter< T >::isTruePeakEnabled ( ) const

inlinenoexcept

Definition at line 474 of file Limiter.h.

◆ lookaheadSamplesFor()

template<FloatType T>

int dspark::Limiter< T >::lookaheadSamplesFor ( T ms ) const

inlineprotectednoexcept

Lookahead in samples for a given ms parameter (shared by the audio-side recompute and getLatency() so both always agree exactly). The product is capped in double before the int cast (out-of-range casts are UB).

Definition at line 545 of file Limiter.h.

◆ prepare() [1/2]

template<FloatType T>

void dspark::Limiter< T >::prepare ( const AudioSpec & spec )

inline

Prepares from AudioSpec (unified API).

Preserves the configured lookahead parameter (it does NOT reset it to the constructor default), so a host re-activation keeps the latency the user dialled in.

Definition at line 187 of file Limiter.h.

◆ prepare() [2/2]

template<FloatType T>

void dspark::Limiter< T >::prepare	(	double	sampleRate,
		int	numChannels = `2`,
		double	initialLookaheadMs = `-1.0`
	)

inline

Allocates memory and prepares the limiter for processing.

Invalid arguments are release-safe: a non-positive or non-finite sample rate makes this call a no-op (the previous state, if any, is kept). Configured parameters (ceiling, release, lookahead, toggles) survive re-preparation.

Warning: Must be called from the main/setup thread, NEVER from the audio thread.

Parameters

sampleRate	Sample rate in Hz (must be > 0).
numChannels	Number of channels to process (clamped to [1, 16]).
initialLookaheadMs	Optional lookahead override in ms; any non-positive or non-finite value (the default) keeps the current lookahead parameter.

Definition at line 116 of file Limiter.h.

◆ processBlock()

template<FloatType T>

void dspark::Limiter< T >::processBlock ( AudioBufferView< T > buffer )

inlinenoexcept

Processes an AudioBufferView in-place.

RT-Safe: Yes. Lock-free and allocation-free.

The gain envelope is linked: the loudest channel drives the reduction applied to all channels. Channels beyond the prepared count pass through untouched (and undelayed).

Parameters

buffer Audio buffer view.

Definition at line 203 of file Limiter.h.

◆ processSample()

template<FloatType T>

T dspark::Limiter< T >::processSample	(	T	input,
		int	channel
	)

inlinenoexcept

Processes a single sample of one channel.

The shared state (ceiling smoother, lookahead glide and gain computer) advances on channel 0, so call channel 0 first within each sample frame. For mono streams (channel 0 only) this path is bit-identical to processBlock(). Peaks of the other channels enter the gain computer one frame late; for properly linked multi-channel limiting prefer processBlock().

Note: No DenormalGuard here (per-sample hot path); per-sample callers are expected to guard their own processing loop.

Definition at line 308 of file Limiter.h.

◆ reset()

template<FloatType T>

void dspark::Limiter< T >::reset ( )

inlinenoexcept

Resets the internal state (delays, gain reduction). RT-Safe.

Definition at line 365 of file Limiter.h.

◆ resetGainComputer()

template<FloatType T>

void dspark::Limiter< T >::resetGainComputer ( )

inlineprotectednoexcept

Clears the gain computer to unity gain (history included).

Definition at line 624 of file Limiter.h.

◆ restartHoldBlock()

template<FloatType T>

DSPARK_NOINLINE void dspark::Limiter< T >::restartHoldBlock ( int64_t firstFrame )

inlineprotectednoexcept

Sliding minimum (van Herk / Gil-Werman, streaming form): the frames are cut into blocks of holdLen_. Once a block is complete its suffix minima are stored; the window ending at a frame of the next block is then the minimum of one stored suffix and the running prefix of that block. Branch-free per frame, one backward pass per block (amortised O(1)). This stores the suffix minima of the block starting at firstFrame and starts a new block at the following frame.

Definition at line 610 of file Limiter.h.

◆ resumBoxes()

template<FloatType T>

DSPARK_NOINLINE void dspark::Limiter< T >::resumBoxes ( )

inlineprotectednoexcept

Recomputes both moving-average sums exactly from their histories.

Definition at line 593 of file Limiter.h.

◆ setAdaptiveRelease()

template<FloatType T>

void dspark::Limiter< T >::setAdaptiveRelease ( bool enabled )

inlinenoexcept

Enables program-dependent adaptive release. RT-Safe.

Definition at line 436 of file Limiter.h.

◆ setCeiling()

template<FloatType T>

void dspark::Limiter< T >::setCeiling ( T dB )

inlinenoexcept

Sets the absolute output ceiling.

Parameters

dB	Ceiling in dBFS (e.g., -1.0 for streaming). RT-Safe. Non-finite values are ignored.

Definition at line 387 of file Limiter.h.

◆ setHold()

template<FloatType T>

void dspark::Limiter< T >::setHold ( T ms )

inlinenoexcept

Sets how long the reduction is held after the last peak that asked for it, before the release starts. RT-Safe.

Without a hold the gain recovers between the crests of a low tone and dips again at the next one, and that ripple is distortion: a 50 Hz sine driven 6 dB over the ceiling (5 ms lookahead, 50 ms release) measures -56.8 dB THD+N with no hold and -149.6 dB with the default 10 ms, and 40 Hz goes from -47.4 to -149.7 dB (30 Hz: -38.4 to -84.7); the 60 Hz + 7 kHz intermodulation products fall from -62.4 to -74.2 dB. The price is loudness after isolated peaks: 0.21 dB of integrated loudness on a dense mix driven 12 dB over the ceiling.

Parameters

ms	Hold in milliseconds, clamped to [0, 50] (default 10; 0 is the previous release-only behaviour). Non-finite values are ignored.

Definition at line 455 of file Limiter.h.

◆ setLookahead()

template<FloatType T>

void dspark::Limiter< T >::setLookahead ( T ms )

inlinenoexcept

Sets the lookahead time dynamically.

Note: RT-Safe (atomic publication from any thread). It only adjusts read pointers up to the max memory allocated during prepare(); the read offset glides to the new value at one sample per sample. Non-finite values are ignored. getLatency() reflects the new value immediately.

Parameters

ms	Lookahead in milliseconds (clamped to 0.5 to 10.0 ms).

Definition at line 416 of file Limiter.h.

◆ setRelease()

template<FloatType T>

void dspark::Limiter< T >::setRelease ( T ms )

inlinenoexcept

Sets the base release time.

Parameters

ms	Release time in milliseconds (floored to 1 ms). RT-Safe. Non-finite values are ignored.

Definition at line 400 of file Limiter.h.

◆ setSafetyClip()

template<FloatType T>

void dspark::Limiter< T >::setSafetyClip ( bool enabled )

inlinenoexcept

Enables the post-limiter soft-knee safety clipper. RT-Safe.

Softens the region above -0.3 dBFS up to the ceiling; it only has an effect when the ceiling is set above -0.3 dBFS (below that, the brickwall clamp already keeps the output under the clipper threshold).

Definition at line 471 of file Limiter.h.

◆ setState()

template<FloatType T>

bool dspark::Limiter< T >::setState	(	const uint8_t *	data,
		size_t	size
	)

inline

Restores parameters from a blob (tolerant; rejects foreign ids).

Definition at line 519 of file Limiter.h.

◆ setTruePeak()

template<FloatType T>

void dspark::Limiter< T >::setTruePeak ( bool enabled )

inlinenoexcept

Enables 4x oversampled ISP true-peak detection. RT-Safe. The attack ramp shortens by the estimator's support (11 samples) so the reduction covers every sample a true-peak reading is formed from.

Definition at line 429 of file Limiter.h.

◆ syncParameters()

template<FloatType T>

void dspark::Limiter< T >::syncParameters ( )

inlineprotectednoexcept

Definition at line 703 of file Limiter.h.

◆ updateHoldSamples()

template<FloatType T>

void dspark::Limiter< T >::updateHoldSamples ( )

inlineprotectednoexcept

Definition at line 727 of file Limiter.h.

◆ updateReleaseCoefficient()

template<FloatType T>

void dspark::Limiter< T >::updateReleaseCoefficient ( )

inlineprotectednoexcept

Definition at line 732 of file Limiter.h.

Member Data Documentation

◆ adaptiveRelease_

template<FloatType T>

std::atomic<bool> dspark::Limiter< T >::adaptiveRelease_ { false }

protected

Definition at line 767 of file Limiter.h.

◆ avgHist_

template<FloatType T>

std::vector<double> dspark::Limiter< T >::avgHist_

protected

First moving-average output history.

Definition at line 794 of file Limiter.h.

◆ blockPos_

template<FloatType T>

int dspark::Limiter< T >::blockPos_ = 0

protected

Position inside the current hold block.

Definition at line 797 of file Limiter.h.

◆ boxA_

template<FloatType T>

int dspark::Limiter< T >::boxA_ = 1

protected

Definition at line 803 of file Limiter.h.

◆ boxB_

template<FloatType T>

int dspark::Limiter< T >::boxB_ = 1

protected

Definition at line 804 of file Limiter.h.

◆ ceilingDb_

template<FloatType T>

std::atomic<T> dspark::Limiter< T >::ceilingDb_ { T(-0.3) }

protected

Definition at line 761 of file Limiter.h.

◆ ceilingSmooth_

template<FloatType T>

SmoothedValue<T> dspark::Limiter< T >::ceilingSmooth_

protected

Definition at line 770 of file Limiter.h.

◆ chunkCeiling_

template<FloatType T>

T dspark::Limiter< T >::chunkCeiling_[kChunk] = {}

protected

Definition at line 814 of file Limiter.h.

◆ chunkGain_

template<FloatType T>

T dspark::Limiter< T >::chunkGain_[kChunk] = {}

protected

Definition at line 815 of file Limiter.h.

◆ chunkLook_

template<FloatType T>

int dspark::Limiter< T >::chunkLook_[kChunk] = {}

protected

Definition at line 816 of file Limiter.h.

◆ chunkPeak_

template<FloatType T>

T dspark::Limiter< T >::chunkPeak_[kChunk] = {}

protected

Definition at line 813 of file Limiter.h.

◆ currentGain_

template<FloatType T>

T dspark::Limiter< T >::currentGain_ = T(1)

protected

Definition at line 779 of file Limiter.h.

◆ delayLines_

template<FloatType T>

std::vector<RingBuffer<T> > dspark::Limiter< T >::delayLines_

protected

Definition at line 822 of file Limiter.h.

◆ eHist_

template<FloatType T>

std::vector<double> dspark::Limiter< T >::eHist_

protected

Released envelope history.

Definition at line 793 of file Limiter.h.

◆ envelope_

template<FloatType T>

double dspark::Limiter< T >::envelope_ = 1.0

protected

Definition at line 800 of file Limiter.h.

◆ frame_

template<FloatType T>

int64_t dspark::Limiter< T >::frame_ = 0

protected

Definition at line 799 of file Limiter.h.

◆ histMask_

template<FloatType T>

int dspark::Limiter< T >::histMask_ = 0

protected

Definition at line 792 of file Limiter.h.

◆ histSize_

template<FloatType T>

int dspark::Limiter< T >::histSize_ = 0

protected

Definition at line 791 of file Limiter.h.

◆ holdLeft_

template<FloatType T>

int dspark::Limiter< T >::holdLeft_ = 0

protected

Hold samples left before the release may act.

Definition at line 777 of file Limiter.h.

◆ holdLen_

template<FloatType T>

int dspark::Limiter< T >::holdLen_ = 97

protected

Definition at line 807 of file Limiter.h.

◆ holdMs_

template<FloatType T>

std::atomic<T> dspark::Limiter< T >::holdMs_ { T(10) }

protected

Definition at line 763 of file Limiter.h.

◆ holdSamples_

template<FloatType T>

int dspark::Limiter< T >::holdSamples_ = 0

protected

Hold length in samples.

Definition at line 776 of file Limiter.h.

◆ invBoxA_

template<FloatType T>

double dspark::Limiter< T >::invBoxA_ = 1.0

protected

Definition at line 805 of file Limiter.h.

◆ invBoxB_

template<FloatType T>

double dspark::Limiter< T >::invBoxB_ = 1.0

protected

Definition at line 806 of file Limiter.h.

◆ invSampleRate_

template<FloatType T>

T dspark::Limiter< T >::invSampleRate_ = T(1.0 / 48000.0)

protected

Definition at line 756 of file Limiter.h.

◆ kChunk

template<FloatType T>

constexpr int dspark::Limiter< T >::kChunk = 128

staticconstexprprotected

Definition at line 812 of file Limiter.h.

◆ kMaxChannels

template<FloatType T>

constexpr int dspark::Limiter< T >::kMaxChannels = 16

staticconstexprprotected

Definition at line 535 of file Limiter.h.

◆ kMaxLookaheadMs

template<FloatType T>

constexpr double dspark::Limiter< T >::kMaxLookaheadMs = 10.0

staticconstexprprotected

Definition at line 536 of file Limiter.h.

◆ kResumPeriod

template<FloatType T>

constexpr int dspark::Limiter< T >::kResumPeriod = 1 << 16

staticconstexprprotected

Definition at line 790 of file Limiter.h.

◆ kSafetyClipCeiling

template<FloatType T>

constexpr T dspark::Limiter< T >::kSafetyClipCeiling = T(0.96605)

staticconstexprprotected

-0.3 dBFS

Definition at line 537 of file Limiter.h.

◆ lastCeilingDb_

template<FloatType T>

T dspark::Limiter< T >::lastCeilingDb_ = T(-0.3)

protected

Change detector for the ceiling pow skip.

Definition at line 771 of file Limiter.h.

◆ lastHoldMs_

template<FloatType T>

T dspark::Limiter< T >::lastHoldMs_ = T(-1)

protected

Definition at line 775 of file Limiter.h.

◆ lastReleaseMs_

template<FloatType T>

T dspark::Limiter< T >::lastReleaseMs_ = T(-1)

protected

Definition at line 774 of file Limiter.h.

◆ limitingDuration_

template<FloatType T>

int dspark::Limiter< T >::limitingDuration_ = 0

protected

Definition at line 785 of file Limiter.h.

◆ lookaheadCurrent_

template<FloatType T>

T dspark::Limiter< T >::lookaheadCurrent_ = T(96)

protected

Smoothed read offset (glides on live changes).

Definition at line 786 of file Limiter.h.

◆ lookaheadDirty_

template<FloatType T>

std::atomic<bool> dspark::Limiter< T >::lookaheadDirty_ { false }

protected

Definition at line 765 of file Limiter.h.

◆ lookaheadMs_

template<FloatType T>

std::atomic<T> dspark::Limiter< T >::lookaheadMs_ { T(2) }

protected

Definition at line 764 of file Limiter.h.

◆ lookaheadSamples_

template<FloatType T>

int dspark::Limiter< T >::lookaheadSamples_ = 96

protected

Audio-side lookahead (consumed from lookaheadMs_).

Definition at line 758 of file Limiter.h.

◆ maxLimitSamples_

template<FloatType T>

int dspark::Limiter< T >::maxLimitSamples_ = 96000

protected

Adaptive-release duration cap (2 s).

Definition at line 759 of file Limiter.h.

◆ numChannels_

template<FloatType T>

int dspark::Limiter< T >::numChannels_ = 2

protected

Definition at line 757 of file Limiter.h.

◆ pendingPeak_

template<FloatType T>

T dspark::Limiter< T >::pendingPeak_ = T(0)

protected

Other channels' peaks for the next processSample() frame.

Definition at line 809 of file Limiter.h.

◆ prefixMin_

template<FloatType T>

double dspark::Limiter< T >::prefixMin_ = 1.0

protected

Running minimum of the current hold block.

Definition at line 798 of file Limiter.h.

◆ prepared_

template<FloatType T>

bool dspark::Limiter< T >::prepared_ = false

protected

Definition at line 754 of file Limiter.h.

◆ publishedGain_

template<FloatType T>

std::atomic<T> dspark::Limiter< T >::publishedGain_ { T(1) }

protected

Cross-thread metering readout of currentGain_: published once per processBlock() and once per processSample() call. processSample() is the per-sample entry point, so there the store does run once per sample – what it never does is sit inside processBlock()'s own sample loop.

Definition at line 784 of file Limiter.h.

◆ releaseCoeff_

template<FloatType T>

T dspark::Limiter< T >::releaseCoeff_ = T(0)

protected

Definition at line 773 of file Limiter.h.

◆ releaseMs_

template<FloatType T>

std::atomic<T> dspark::Limiter< T >::releaseMs_ { T(100) }

protected

Definition at line 762 of file Limiter.h.

◆ rHist_

template<FloatType T>

std::vector<double> dspark::Limiter< T >::rHist_

protected

Required-gain history.

Definition at line 795 of file Limiter.h.

◆ safetyClipEnabled_

template<FloatType T>

std::atomic<bool> dspark::Limiter< T >::safetyClipEnabled_ { false }

protected

Definition at line 768 of file Limiter.h.

◆ sampleCeiling_

template<FloatType T>

T dspark::Limiter< T >::sampleCeiling_ = T(0.96605)

protected

Definition at line 819 of file Limiter.h.

◆ sampleLookNow_

template<FloatType T>

int dspark::Limiter< T >::sampleLookNow_ = 96

protected

Definition at line 820 of file Limiter.h.

◆ sampleRate_

template<FloatType T>

double dspark::Limiter< T >::sampleRate_ = 48000.0

protected

Definition at line 755 of file Limiter.h.

◆ sinceResum_

template<FloatType T>

int dspark::Limiter< T >::sinceResum_ = 0

protected

Definition at line 808 of file Limiter.h.

◆ sufMin_

template<FloatType T>

std::vector<double> dspark::Limiter< T >::sufMin_

protected

Suffix minima of the last complete hold block (+1 empty).

Definition at line 796 of file Limiter.h.

◆ sum1_

template<FloatType T>

double dspark::Limiter< T >::sum1_ = 1.0

protected

Definition at line 801 of file Limiter.h.

◆ sum2_

template<FloatType T>

double dspark::Limiter< T >::sum2_ = 1.0

protected

Definition at line 802 of file Limiter.h.

◆ truePeak_

template<FloatType T>

TruePeakDetector<T, kMaxChannels> dspark::Limiter< T >::truePeak_

protected

Definition at line 540 of file Limiter.h.

◆ truePeakEnabled_

template<FloatType T>

std::atomic<bool> dspark::Limiter< T >::truePeakEnabled_ { false }

protected

Definition at line 766 of file Limiter.h.

The documentation for this class was generated from the following file:

Limiter.h

Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ~Limiter()

Member Function Documentation

◆ advanceGain()

◆ applyLookaheadTarget()

◆ applySafetyClipper()

◆ configureGainComputer()

◆ getGainReductionDb()

◆ getHold()

◆ getLatency()

◆ getLookahead()

◆ getState()

◆ isAdaptiveReleaseEnabled()

◆ isSafetyClipEnabled()

◆ isTruePeakEnabled()

◆ lookaheadSamplesFor()

◆ prepare() [1/2]

◆ prepare() [2/2]

◆ processBlock()

◆ processSample()

◆ reset()

◆ resetGainComputer()

◆ restartHoldBlock()

◆ resumBoxes()

◆ setAdaptiveRelease()

◆ setCeiling()

◆ setHold()

◆ setLookahead()

◆ setRelease()

◆ setSafetyClip()

◆ setState()

◆ setTruePeak()

◆ syncParameters()

◆ updateHoldSamples()

◆ updateReleaseCoefficient()

Member Data Documentation

◆ adaptiveRelease_

◆ avgHist_

◆ blockPos_

◆ boxA_

◆ boxB_

◆ ceilingDb_

◆ ceilingSmooth_

◆ chunkCeiling_

◆ chunkGain_

◆ chunkLook_

◆ chunkPeak_

◆ currentGain_

◆ delayLines_

◆ eHist_

◆ envelope_

◆ frame_

◆ histMask_

◆ histSize_

◆ holdLeft_

◆ holdLen_

◆ holdMs_

◆ holdSamples_

◆ invBoxA_

◆ invBoxB_

◆ invSampleRate_

◆ kChunk

◆ kMaxChannels

◆ kMaxLookaheadMs

◆ kResumPeriod

◆ kSafetyClipCeiling

◆ lastCeilingDb_

◆ lastHoldMs_

◆ lastReleaseMs_

◆ limitingDuration_

◆ lookaheadCurrent_

◆ lookaheadDirty_

◆ lookaheadMs_

◆ lookaheadSamples_

◆ maxLimitSamples_
