Downward expander with ratio control, hysteresis, and sidechain. More...

#include <Expander.h>

Public Types
enum class	State { Closed , Open , Hold }

Public Member Functions
	~Expander ()=default

void	prepare (double sampleRate, int numChannels=2) noexcept
	Initializes the expander with a specific sample rate.

void	prepare (const AudioSpec &spec) noexcept
	Initializes the expander using an AudioSpec struct.

void	processBlock (AudioBufferView< T > buffer) noexcept
	Processes an audio block in place (internal detector key).

void	processBlock (AudioBufferView< T > buffer, AudioBufferView< T > sidechain) noexcept
	Processes an audio block in place, keyed by an external sidechain.

void	setThreshold (T dB) noexcept
	Sets the threshold in decibels.

void	setRatio (T ratio) noexcept
	Sets the expansion ratio (e.g., 4.0 for 4:1).

void	setHysteresis (T dB) noexcept
	Sets the hysteresis gap in decibels to prevent chattering.

void	setRange (T dB) noexcept
	Sets the maximum gain reduction limit in decibels (<= 0).

void	setAttack (T ms) noexcept
	Sets the attack time in milliseconds.

void	setHold (T ms) noexcept
	Sets the hold time in milliseconds before release begins.

void	setRelease (T ms) noexcept
	Sets the release time in milliseconds.

void	setSidechainHPF (bool enabled, double cutoffHz=80.0) noexcept
	Enables and configures the sidechain high-pass filter.

void	setLookahead (T ms) noexcept
	Sets the lookahead: the audio is delayed so the gain moves ahead of it. 0 (default) is latency-free.

T	getLookahead () const noexcept
	Returns the lookahead in milliseconds.

int	getLatency () const noexcept
	Latency in samples (the lookahead), correct right after setLookahead().

State	getGateState () const noexcept

T	getCurrentGainDb () const noexcept

void	reset () noexcept
	Resets all internal DSP states to prevent clicks on playback start.

std::vector< uint8_t >	getState () const
	Serializes the parameter state (setup/UI threads; allocates).

bool	setState (const uint8_t *data, size_t size)
	Restores parameters from a blob (tolerant; rejects foreign ids).

Protected Member Functions
void	cacheParams () noexcept

int	lookaheadSamplesFor (T ms) const noexcept

template<bool UseHPF, bool UseSc>
void	processBlockInternal (AudioBufferView< T > buffer, const AudioBufferView< T > *sidechain) noexcept
	Internal processing loop templated on HPF/sidechain to avoid branching.

void	publishMeters () noexcept
	Publishes the metering words for cross-thread readout.

void	updateStateMachine (T levelDb) noexcept

T	computeGain (T levelDb) noexcept

void	updateCoefficients () noexcept

Protected Attributes
double	sampleRate_ = 48000.0

bool	prepared_ = false

std::atomic< T >	threshold_ { T(-40) }

std::atomic< T >	ratio_ { T(4) }

std::atomic< T >	hysteresis_ { T(4) }

std::atomic< T >	attackMs_ { T(0.5) }

std::atomic< T >	holdMs_ { T(50) }

std::atomic< T >	releaseMs_ { T(100) }

std::atomic< T >	rangeDb_ { T(-80) }

std::atomic< T >	rangeLinear_ { T(0.0001) }

std::atomic< bool >	scHpfEnabled_ { false }

std::atomic< T >	scHpfFreqHz_ { T(80) }

std::atomic< T >	scHpfCoeff_ { T(0.995) }

std::atomic< T >	scHpfA0_ { T(0.9975) }

std::array< T, MAX_CHANNELS >	scHpfState_ {}

std::array< T, MAX_CHANNELS >	scHpfPrev_ {}

std::atomic< T >	lookaheadMs_ { T(0) }

int	cachedLookahead_ = 0
	Audio-side samples (per block).

int	maxLookaheadSamples_ = 0
	Allocated delay (0 before prepare()).

int	lookaheadChannels_ = 0
	Channels with a prepared delay line.

std::array< RingBuffer< T >, MAX_CHANNELS >	lookahead_ {}

std::atomic< T >	attackCoeff_ { T(0) }

std::atomic< T >	releaseCoeff_ { T(0) }

std::atomic< T >	detAttCoeff_ { T(0.01) }

std::atomic< T >	detRelCoeff_ { T(0.001) }

std::atomic< int >	holdSamples_ { 0 }

T	cachedThreshold_ = T(-40)

T	cachedRatio_ = T(4)

T	cachedHysteresis_ = T(4)

T	cachedRangeLinear_ = T(0.0001)

T	cachedAttackCoeff_ = T(0)

T	cachedReleaseCoeff_ = T(0)

T	cachedDetAttCoeff_ = T(0.01)

T	cachedDetRelCoeff_ = T(0.001)

T	cachedScHpfCoeff_ = T(0.995)

T	cachedScHpfA0_ = T(0.9975)

int	cachedHoldSamples_ = 0

bool	cachedScHpfEnabled_ = false

State	state_ = State::Closed

T	gateGain_ = T(0)

std::atomic< State >	publishedState_ { State::Closed }

std::atomic< T >	publishedGateGain_ { T(0) }

T	envelope_ = T(0)

int	holdCounter_ = 0

Static Protected Attributes
static constexpr int	MAX_CHANNELS = 16

static constexpr double	kMaxLookaheadMs = 10.0

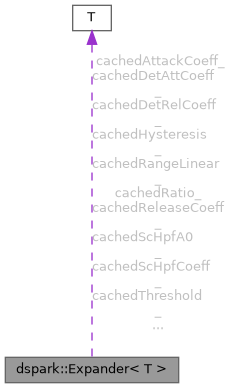

Detailed Description

template<FloatType T>
class dspark::Expander< T >

Downward expander with ratio control, hysteresis, and sidechain.

Template Parameters

T	Sample type (float or double).

Definition at line 64 of file Expander.h.

Member Enumeration Documentation

◆ State

template<FloatType T>

enum class dspark::Expander::State

strong

Enumerator
Closed
Open
Hold

Definition at line 69 of file Expander.h.

Constructor & Destructor Documentation

◆ ~Expander()

template<FloatType T>

dspark::Expander< T >::~Expander ( )

default

Member Function Documentation

◆ cacheParams()

template<FloatType T>

void dspark::Expander< T >::cacheParams ( )

inlineprotectednoexcept

Definition at line 342 of file Expander.h.

◆ computeGain()

template<FloatType T>

T dspark::Expander< T >::computeGain ( T levelDb )

inlineprotectednoexcept

Definition at line 475 of file Expander.h.

◆ getCurrentGainDb()

template<FloatType T>

T dspark::Expander< T >::getCurrentGainDb ( ) const

inlinenoexcept

Returns: The current actual gain being applied, in decibels. Safe from any thread: loads a published atomic word, so it may be up to one block behind (same reason as getGateState()).

Definition at line 284 of file Expander.h.

◆ getGateState()

template<FloatType T>

State dspark::Expander< T >::getGateState ( ) const

inlinenoexcept

Returns: The current state of the expander's logic gate. Safe from any thread: loads a published atomic word, so it may be up to one block behind. It used to read the plain member the audio thread writes per sample – a data race, not merely an approximate number. (Renamed from getState(), which now follows the framework-wide preset serialization convention.)

Definition at line 276 of file Expander.h.

◆ getLatency()

template<FloatType T>

int dspark::Expander< T >::getLatency ( ) const

inlinenoexcept

Latency in samples (the lookahead), correct right after setLookahead().

Definition at line 263 of file Expander.h.

◆ getLookahead()

template<FloatType T>

T dspark::Expander< T >::getLookahead ( ) const

inlinenoexcept

Returns the lookahead in milliseconds.

Definition at line 260 of file Expander.h.

◆ getState()

template<FloatType T>

std::vector< uint8_t > dspark::Expander< T >::getState ( ) const

inline

Serializes the parameter state (setup/UI threads; allocates).

Definition at line 305 of file Expander.h.

◆ lookaheadSamplesFor()

template<FloatType T>

int dspark::Expander< T >::lookaheadSamplesFor ( T ms ) const

inlineprotectednoexcept

Lookahead in samples for a ms value (shared by cacheParams() and getLatency()).

Definition at line 360 of file Expander.h.

◆ prepare() [1/2]

template<FloatType T>

void dspark::Expander< T >::prepare ( const AudioSpec & spec )

inlinenoexcept

Initializes the expander using an AudioSpec struct.

Parameters

spec	Framework audio specification object (invalid specs are ignored).

Definition at line 102 of file Expander.h.

◆ prepare() [2/2]

template<FloatType T>

void dspark::Expander< T >::prepare	(	double	sampleRate,
		int	numChannels = `2`
	)

inlinenoexcept

Initializes the expander with a specific sample rate.

Parameters

sampleRate	The sample rate in Hz. Non-finite or non-positive rates are ignored (previous state is kept).
numChannels	Channels that receive the lookahead delay (clamped to [1, 16]); further channels are processed undelayed.

Definition at line 80 of file Expander.h.

◆ processBlock() [1/2]

template<FloatType T>

void dspark::Expander< T >::processBlock ( AudioBufferView< T > buffer )

inlinenoexcept

Processes an audio block in place (internal detector key).

Parameters

buffer View of the audio buffer to process.

Definition at line 112 of file Expander.h.

◆ processBlock() [2/2]

template<FloatType T>

void dspark::Expander< T >::processBlock	(	AudioBufferView< T >	buffer,
		AudioBufferView< T >	sidechain
	)

inlinenoexcept

Processes an audio block in place, keyed by an external sidechain.

The detector (and its optional HPF) runs on the sidechain channels; the resulting gain is applied to the audio buffer. If the sidechain is empty or shorter than the audio block, the internal key is used instead.

Parameters

buffer	Audio to process in place.
sidechain	Detector key signal (not modified).

Definition at line 134 of file Expander.h.

◆ processBlockInternal()

template<FloatType T>

template<bool UseHPF, bool UseSc>

void dspark::Expander< T >::processBlockInternal	(	AudioBufferView< T >	buffer,
		const AudioBufferView< T > *	sidechain
	)

inlineprotectednoexcept

Internal processing loop templated on HPF/sidechain to avoid branching.

Template Parameters

UseHPF	Compile-time flag to include HPF processing.
UseSc	Compile-time flag: detector keyed by the external sidechain.

Parameters

buffer	View of the audio buffer (gain target).
sidechain	Detector key when UseSc (guaranteed >= buffer length).

Definition at line 374 of file Expander.h.

◆ publishMeters()

template<FloatType T>

void dspark::Expander< T >::publishMeters ( )

inlineprotectednoexcept

Publishes the metering words for cross-thread readout.

Two relaxed stores per block, outside the per-sample loop: the getters used to read state_ and gateGain_ directly, which are plain words the audio thread writes every sample.

Definition at line 443 of file Expander.h.

◆ reset()

template<FloatType T>

void dspark::Expander< T >::reset ( )

inlinenoexcept

Resets all internal DSP states to prevent clicks on playback start.

Definition at line 290 of file Expander.h.

◆ setAttack()

template<FloatType T>

void dspark::Expander< T >::setAttack ( T ms )

inlinenoexcept

Sets the attack time in milliseconds.

Definition at line 192 of file Expander.h.

◆ setHold()

template<FloatType T>

void dspark::Expander< T >::setHold ( T ms )

inlinenoexcept

Sets the hold time in milliseconds before release begins.

Definition at line 200 of file Expander.h.

◆ setHysteresis()

template<FloatType T>

void dspark::Expander< T >::setHysteresis ( T dB )

inlinenoexcept

Sets the hysteresis gap in decibels to prevent chattering.

Definition at line 176 of file Expander.h.

◆ setLookahead()

template<FloatType T>

void dspark::Expander< T >::setLookahead ( T ms )

inlinenoexcept

Sets the lookahead: the audio is delayed so the gain moves ahead of it. 0 (default) is latency-free.

RT-safe publication, consumed at the next block; change it while stopped (a live change jumps the delay and may click). Report getLatency() to the host for delay compensation.

Parameters

ms	Lookahead in milliseconds, clamped to [0, 10]. Non-finite values are ignored.

Definition at line 253 of file Expander.h.

◆ setRange()

template<FloatType T>

void dspark::Expander< T >::setRange ( T dB )

inlinenoexcept

Sets the maximum gain reduction limit in decibels (<= 0).

Definition at line 183 of file Expander.h.

◆ setRatio()

template<FloatType T>

void dspark::Expander< T >::setRatio ( T ratio )

inlinenoexcept

Sets the expansion ratio (e.g., 4.0 for 4:1).

Definition at line 169 of file Expander.h.

◆ setRelease()

template<FloatType T>

void dspark::Expander< T >::setRelease ( T ms )

inlinenoexcept

Sets the release time in milliseconds.

Definition at line 216 of file Expander.h.

◆ setSidechainHPF()

template<FloatType T>

void dspark::Expander< T >::setSidechainHPF	(	bool	enabled,
		double	cutoffHz = `80.0`
	)

inlinenoexcept

Enables and configures the sidechain high-pass filter.

Invalid cutoffs (non-finite or <= 0) keep the previous frequency and only apply the toggle; the design clamp is [1, 0.45 * sampleRate]. A negative cutoff used to flip the one-pole into an unstable growth filter, blowing up the detector and pinning the expander open.

Parameters

enabled	True to engage the HPF.
cutoffHz	Cutoff frequency in Hz.

Definition at line 234 of file Expander.h.

◆ setState()

template<FloatType T>

bool dspark::Expander< T >::setState	(	const uint8_t *	data,
		size_t	size
	)

inline

Restores parameters from a blob (tolerant; rejects foreign ids).

Definition at line 324 of file Expander.h.

◆ setThreshold()

template<FloatType T>

void dspark::Expander< T >::setThreshold ( T dB )

inlinenoexcept

Sets the threshold in decibels.

Definition at line 162 of file Expander.h.

◆ updateCoefficients()

template<FloatType T>

void dspark::Expander< T >::updateCoefficients ( )

inlineprotectednoexcept

Definition at line 507 of file Expander.h.

◆ updateStateMachine()

template<FloatType T>

void dspark::Expander< T >::updateStateMachine ( T levelDb )

inlineprotectednoexcept

Definition at line 449 of file Expander.h.

Member Data Documentation

◆ attackCoeff_

template<FloatType T>

std::atomic<T> dspark::Expander< T >::attackCoeff_ { T(0) }

protected

Definition at line 562 of file Expander.h.

◆ attackMs_

template<FloatType T>

std::atomic<T> dspark::Expander< T >::attackMs_ { T(0.5) }

protected

Definition at line 538 of file Expander.h.

◆ cachedAttackCoeff_

template<FloatType T>

T dspark::Expander< T >::cachedAttackCoeff_ = T(0)

protected

Definition at line 573 of file Expander.h.

◆ cachedDetAttCoeff_

template<FloatType T>

T dspark::Expander< T >::cachedDetAttCoeff_ = T(0.01)

protected

Definition at line 575 of file Expander.h.

◆ cachedDetRelCoeff_

template<FloatType T>

T dspark::Expander< T >::cachedDetRelCoeff_ = T(0.001)

protected

Definition at line 576 of file Expander.h.

◆ cachedHoldSamples_

template<FloatType T>

int dspark::Expander< T >::cachedHoldSamples_ = 0

protected

Definition at line 579 of file Expander.h.

◆ cachedHysteresis_

template<FloatType T>

T dspark::Expander< T >::cachedHysteresis_ = T(4)

protected

Definition at line 571 of file Expander.h.

◆ cachedLookahead_

template<FloatType T>

int dspark::Expander< T >::cachedLookahead_ = 0

protected

Audio-side samples (per block).

Definition at line 557 of file Expander.h.

◆ cachedRangeLinear_

template<FloatType T>

T dspark::Expander< T >::cachedRangeLinear_ = T(0.0001)

protected

Definition at line 572 of file Expander.h.

◆ cachedRatio_

template<FloatType T>

T dspark::Expander< T >::cachedRatio_ = T(4)

protected

Definition at line 570 of file Expander.h.

◆ cachedReleaseCoeff_

template<FloatType T>

T dspark::Expander< T >::cachedReleaseCoeff_ = T(0)

protected

Definition at line 574 of file Expander.h.

◆ cachedScHpfA0_

template<FloatType T>

T dspark::Expander< T >::cachedScHpfA0_ = T(0.9975)

protected

Definition at line 578 of file Expander.h.

◆ cachedScHpfCoeff_

template<FloatType T>

T dspark::Expander< T >::cachedScHpfCoeff_ = T(0.995)

protected

Definition at line 577 of file Expander.h.

◆ cachedScHpfEnabled_

template<FloatType T>

bool dspark::Expander< T >::cachedScHpfEnabled_ = false

protected

Definition at line 580 of file Expander.h.

◆ cachedThreshold_

template<FloatType T>

T dspark::Expander< T >::cachedThreshold_ = T(-40)

protected

Definition at line 569 of file Expander.h.

◆ detAttCoeff_

template<FloatType T>

std::atomic<T> dspark::Expander< T >::detAttCoeff_ { T(0.01) }

protected

Definition at line 564 of file Expander.h.

◆ detRelCoeff_

template<FloatType T>

std::atomic<T> dspark::Expander< T >::detRelCoeff_ { T(0.001) }

protected

Definition at line 565 of file Expander.h.

◆ envelope_

template<FloatType T>

T dspark::Expander< T >::envelope_ = T(0)

protected

Definition at line 587 of file Expander.h.

◆ gateGain_

template<FloatType T>

T dspark::Expander< T >::gateGain_ = T(0)

protected

Definition at line 583 of file Expander.h.

◆ holdCounter_

template<FloatType T>

int dspark::Expander< T >::holdCounter_ = 0

protected

Definition at line 588 of file Expander.h.

◆ holdMs_

template<FloatType T>

std::atomic<T> dspark::Expander< T >::holdMs_ { T(50) }

protected

Definition at line 539 of file Expander.h.

◆ holdSamples_

template<FloatType T>

std::atomic<int> dspark::Expander< T >::holdSamples_ { 0 }

protected

Definition at line 566 of file Expander.h.

◆ hysteresis_

template<FloatType T>

std::atomic<T> dspark::Expander< T >::hysteresis_ { T(4) }

protected

Definition at line 537 of file Expander.h.

◆ kMaxLookaheadMs

template<FloatType T>

constexpr double dspark::Expander< T >::kMaxLookaheadMs = 10.0

staticconstexprprotected

Definition at line 555 of file Expander.h.

◆ lookahead_

template<FloatType T>

std::array<RingBuffer<T>, MAX_CHANNELS> dspark::Expander< T >::lookahead_ {}

protected

Definition at line 560 of file Expander.h.

◆ lookaheadChannels_

template<FloatType T>

int dspark::Expander< T >::lookaheadChannels_ = 0

protected

Channels with a prepared delay line.

Definition at line 559 of file Expander.h.

◆ lookaheadMs_

template<FloatType T>

std::atomic<T> dspark::Expander< T >::lookaheadMs_ { T(0) }

protected

Definition at line 556 of file Expander.h.

◆ MAX_CHANNELS

template<FloatType T>

constexpr int dspark::Expander< T >::MAX_CHANNELS = 16

staticconstexprprotected

Definition at line 550 of file Expander.h.

◆ maxLookaheadSamples_

template<FloatType T>

int dspark::Expander< T >::maxLookaheadSamples_ = 0

protected

Allocated delay (0 before prepare()).

Definition at line 558 of file Expander.h.

◆ prepared_

template<FloatType T>

bool dspark::Expander< T >::prepared_ = false

protected

Definition at line 533 of file Expander.h.

◆ publishedGateGain_

template<FloatType T>

std::atomic<T> dspark::Expander< T >::publishedGateGain_ { T(0) }

protected

Definition at line 586 of file Expander.h.

◆ publishedState_

template<FloatType T>

std::atomic<State> dspark::Expander< T >::publishedState_ { State::Closed }

protected

Definition at line 585 of file Expander.h.

◆ rangeDb_

template<FloatType T>

std::atomic<T> dspark::Expander< T >::rangeDb_ { T(-80) }

protected

Definition at line 541 of file Expander.h.

◆ rangeLinear_

template<FloatType T>

std::atomic<T> dspark::Expander< T >::rangeLinear_ { T(0.0001) }

protected

Definition at line 542 of file Expander.h.

◆ ratio_

template<FloatType T>

std::atomic<T> dspark::Expander< T >::ratio_ { T(4) }

protected

Definition at line 536 of file Expander.h.

◆ releaseCoeff_

template<FloatType T>

std::atomic<T> dspark::Expander< T >::releaseCoeff_ { T(0) }

protected

Definition at line 563 of file Expander.h.

◆ releaseMs_

template<FloatType T>

std::atomic<T> dspark::Expander< T >::releaseMs_ { T(100) }

protected

Definition at line 540 of file Expander.h.

◆ sampleRate_

template<FloatType T>

double dspark::Expander< T >::sampleRate_ = 48000.0

protected

Definition at line 532 of file Expander.h.

◆ scHpfA0_

template<FloatType T>

std::atomic<T> dspark::Expander< T >::scHpfA0_ { T(0.9975) }

protected

Definition at line 547 of file Expander.h.

◆ scHpfCoeff_

template<FloatType T>

std::atomic<T> dspark::Expander< T >::scHpfCoeff_ { T(0.995) }

protected

Definition at line 546 of file Expander.h.

◆ scHpfEnabled_

template<FloatType T>

std::atomic<bool> dspark::Expander< T >::scHpfEnabled_ { false }

protected

Definition at line 544 of file Expander.h.

◆ scHpfFreqHz_

template<FloatType T>

std::atomic<T> dspark::Expander< T >::scHpfFreqHz_ { T(80) }

protected

Definition at line 545 of file Expander.h.

◆ scHpfPrev_

template<FloatType T>

std::array<T, MAX_CHANNELS> dspark::Expander< T >::scHpfPrev_ {}

protected

Definition at line 552 of file Expander.h.

◆ scHpfState_

template<FloatType T>

std::array<T, MAX_CHANNELS> dspark::Expander< T >::scHpfState_ {}

protected

Definition at line 551 of file Expander.h.

◆ state_

template<FloatType T>

State dspark::Expander< T >::state_ = State::Closed

protected

Definition at line 582 of file Expander.h.

◆ threshold_

template<FloatType T>

std::atomic<T> dspark::Expander< T >::threshold_ { T(-40) }

protected

Definition at line 535 of file Expander.h.

The documentation for this class was generated from the following file:

Expander.h

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ State

Constructor & Destructor Documentation

◆ ~Expander()

Member Function Documentation

◆ cacheParams()

◆ computeGain()

◆ getCurrentGainDb()

◆ getGateState()

◆ getLatency()

◆ getLookahead()

◆ getState()

◆ lookaheadSamplesFor()

◆ prepare() [1/2]

◆ prepare() [2/2]

◆ processBlock() [1/2]

◆ processBlock() [2/2]

◆ processBlockInternal()

◆ publishMeters()

◆ reset()

◆ setAttack()

◆ setHold()

◆ setHysteresis()

◆ setLookahead()

◆ setRange()

◆ setRatio()

◆ setRelease()

◆ setSidechainHPF()

◆ setState()

◆ setThreshold()

◆ updateCoefficients()

◆ updateStateMachine()

Member Data Documentation

◆ attackCoeff_

◆ attackMs_

◆ cachedAttackCoeff_

◆ cachedDetAttCoeff_

◆ cachedDetRelCoeff_

◆ cachedHoldSamples_

◆ cachedHysteresis_

◆ cachedLookahead_

◆ cachedRangeLinear_

◆ cachedRatio_

◆ cachedReleaseCoeff_

◆ cachedScHpfA0_

◆ cachedScHpfCoeff_

◆ cachedScHpfEnabled_

◆ cachedThreshold_

◆ detAttCoeff_

◆ detRelCoeff_

◆ envelope_

◆ gateGain_

◆ holdCounter_

◆ holdMs_

◆ holdSamples_

◆ hysteresis_

◆ kMaxLookaheadMs

◆ lookahead_

◆ lookaheadChannels_

◆ lookaheadMs_

◆ MAX_CHANNELS

◆ maxLookaheadSamples_

◆ prepared_

◆ publishedGateGain_

◆ publishedState_

◆ rangeDb_

◆ rangeLinear_

◆ ratio_

◆ releaseCoeff_

◆ releaseMs_

◆ sampleRate_

◆ scHpfA0_

◆ scHpfCoeff_

◆ scHpfEnabled_
