Vibrato.h File Reference

Pitch modulation via LFO-driven variable delay. More...

#include "../Core/AudioBuffer.h"
#include "../Core/AudioSpec.h"
#include "../Core/DspMath.h"
#include "../Core/Phasor.h"
#include "../Core/RingBuffer.h"
#include "../Core/StateBlob.h"
#include <algorithm>
#include <atomic>
#include <cmath>
#include <cstddef>
#include <cstdint>
#include <numbers>
#include <vector>

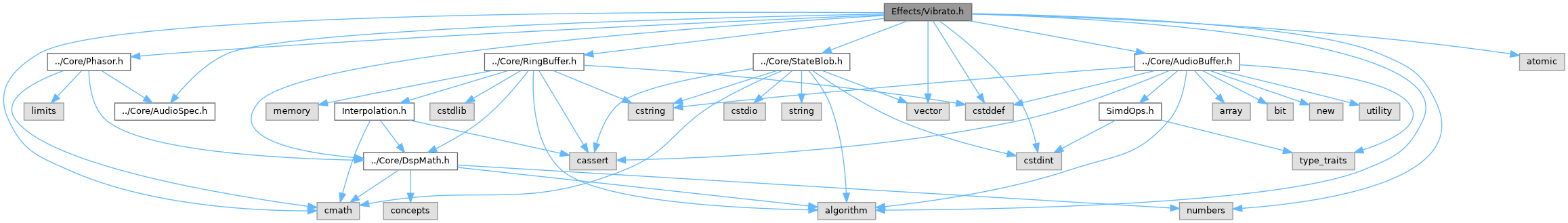

Include dependency graph for Vibrato.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	dspark::Vibrato< T >
	Professional-grade pitch vibrato with LFO FM and parameter smoothing. More...

Namespaces
namespace	dspark
	Main namespace for the DSPark framework.

Detailed Description

Pitch modulation via LFO-driven variable delay.

Modulates pitch by varying a short delay line with a primary LFO. Features FM modulation on the primary LFO for complex, non-static pitch variations, and parameter smoothing to prevent zipper noise during automation.

Threading: prepare() belongs to the setup thread; processBlock() and reset() belong to the audio thread. Setters are lock-free atomic publications, safe from any thread, consumed at the next processBlock(). Non-finite setter arguments are ignored.

Dependencies: Phasor.h, RingBuffer.h, DspMath.h, AudioSpec.h, AudioBuffer.h, StateBlob.h.

dspark::Vibrato<float> vibrato;
vibrato.prepare(spec);
vibrato.setRate(5.0f);          // 5 Hz
vibrato.setDepth(0.5f);         // 0.5 semitones
vibrato.processBlock(buffer);

Definition in file Vibrato.h.
