TransientDesigner.h File Reference

Transient shaping via dual-envelope analysis (VCA Logarithmic Model). More...

#include "../Core/DspMath.h"
#include "../Core/AudioSpec.h"
#include "../Core/AudioBuffer.h"
#include "../Core/DenormalGuard.h"
#include "../Core/StateBlob.h"
#include <algorithm>
#include <array>
#include <atomic>
#include <cmath>
#include <cstddef>
#include <cstdint>
#include <vector>

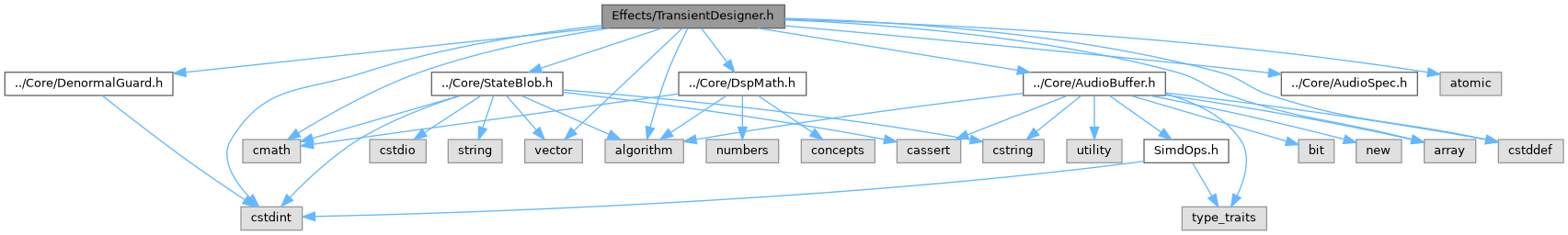

Include dependency graph for TransientDesigner.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	dspark::TransientDesigner< T >
	Zero-allocation, thread-safe transient shaper. More...

Namespaces
namespace	dspark
	Main namespace for the DSPark framework.

Detailed Description

Transient shaping via dual-envelope analysis (VCA Logarithmic Model).

Emulates classic analog transient shapers by calculating the difference between a fast (peak) and slow (RMS) envelope in the logarithmic domain. This effectively separates the attack and release phases, applying independent gain adjustments to the transient and the body.

Threading model:

• prepare() / reset() / getState() / setState(): setup or UI threads only, never concurrently with processBlock().
• setAttack / setSustain / setCharacter / setOutputDepRecovery: RT-safe atomic publications from any thread (non-finite values are ignored).
• Channels beyond the 16-channel state cap are left untouched.
• Before prepare() the envelope coefficients are zero, which makes processBlock() an exact pass-through by construction.

Dependencies: DspMath.h, AudioSpec.h, AudioBuffer.h, DenormalGuard.h, StateBlob.h.

dspark::TransientDesigner<float> td;
td.prepare(spec);
td.setAttack(0.5f);    // +50% attack emphasis
td.setSustain(-0.3f);  // -30% sustain reduction
td.processBlock(buffer);

Definition in file TransientDesigner.h.
