Audio transformer: core hysteresis on the flux, LF bloom, HF bell. More...

#include "../Core/AudioBuffer.h"
#include "../Core/AudioSpec.h"
#include "../Core/Biquad.h"
#include "../Core/DenormalGuard.h"
#include "../Core/DspMath.h"
#include "../Core/Hysteresis.h"
#include "../Core/StateBlob.h"
#include <algorithm>
#include <atomic>
#include <cmath>
#include <cstddef>
#include <cstdint>
#include <numbers>
#include <vector>

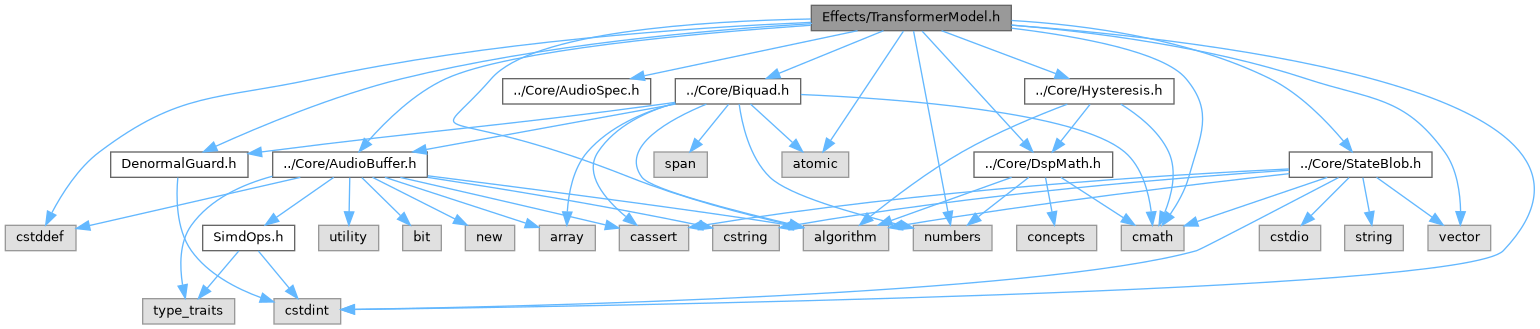

Include dependency graph for TransformerModel.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	dspark::TransformerModel< T >
	Physical audio-transformer coloration (flux-domain JA hysteresis). More...

Namespaces
namespace	dspark
	Main namespace for the DSPark framework.

Detailed Description

Audio transformer: core hysteresis on the flux, LF bloom, HF bell.

What makes a transformer sound like a transformer is where its nonlinearity lives: the core saturates on magnetic FLUX, which is the time-integral of the winding voltage. At equal level, low frequencies integrate to much larger flux than highs (Phi ~ V/f), so distortion and compression concentrate in the low end - the classic "iron" low-frequency bloom - while the top stays clean.

The model implements that physics directly:

in -> leaky trapezoidal integrator (flux) -> Jiles-Atherton hysteresis -> exact algebraic inverse differentiator -> magnetizing-corner high-pass (finite Lm) -> leakage/capacitance HF bell -> out

The integrator/differentiator pair is an exact algebraic inverse, so the linear part of the JA loop passes transparently (verified by null test); everything you hear is the core's hysteresis acting on flux, with the loop's odd-dominant saturation, remanence memory and rate-dependent loss. The JA core is shared with TapeMachine (Core/Hysteresis.h), parameterised for an unbiased iron core (wider loop than biased tape).

coreSize moves the magnetizing-inductance corner (40 Hz small core -> 5 Hz big core) and scales the flux headroom the same way real iron does: big cores ring lower and take more level before saturating.
resonance raises the leakage-inductance/capacitance bell (Jensen-style), mapped into the audible band near the top octave.
Loudness is calibrated empirically at PROGRAM level (100 Hz, -12 dBFS - the flux regime music drives the core into; same convention as TapeMachine/TubePreamp): drive changes iron, not volume. Gain changes are ramped (~50 ms), which matters doubly here because the model differentiates its output.

Zero latency. The Saturation effect's lightweight Transformer algorithm remains as the cheap alternative; this is the physical one. Unlike the biased tape core, the leaky flux integrator continuously re-centres the loop, so the response is history-independent by construction (verified: 0.000 dB branch delta at programme level).

Threading model: parameter setters/getters are std::atomic based and safe from any thread (non-finite values are ignored; changes are published with a release store and consumed at the next block). prepare() is setup-thread only (allocates; invalid specs are ignored and an unprepared instance passes audio through). reset() belongs to the stream owner. getState()/setState() are setup/UI threads. The dry/wet mix is smoothed linearly over one block. Channels beyond the prepared count pass through untouched.

Dependencies: Core/Hysteresis.h, Core/Biquad.h, Core/AudioSpec.h, Core/AudioBuffer.h, Core/DspMath.h, Core/DenormalGuard.h, Core/StateBlob.h.

Definition in file TransformerModel.h.
