SpectralProcessor.h File Reference

Zero-allocation streaming STFT framework for spectral processing. More...

#include "FFT.h"
#include "WindowFunctions.h"
#include "AudioSpec.h"
#include "AudioBuffer.h"
#include "DenormalGuard.h"
#include <algorithm>
#include <cassert>
#include <cmath>
#include <cstddef>
#include <memory>
#include <vector>

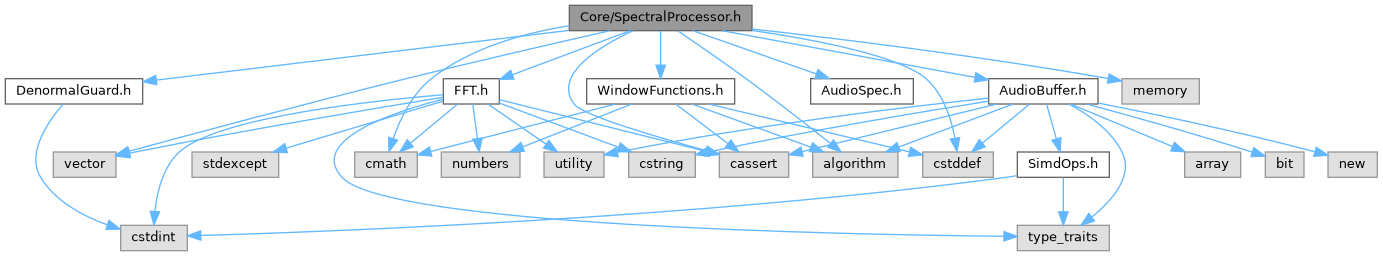

Include dependency graph for SpectralProcessor.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	dspark::SpectralProcessor< T >
	High-performance STFT analysis-modification-synthesis pipeline. More...

Namespaces
namespace	dspark
	Main namespace for the DSPark framework.

Detailed Description

Zero-allocation streaming STFT framework for spectral processing.

Provides a WOLA (Weighted Overlap-Add) STFT pipeline: input ring -> analysis window -> FFT -> user inline callback -> IFFT -> synthesis window -> overlap-add -> output. Analysis and synthesis both use a periodic sqrt-Hann window, so the round-trip window product is Hann and the constant-overlap-add condition holds exactly for every divisor hop.

The processing callback is a template parameter, so the compiler inlines the frequency-domain modification directly into the hop loop: no std::function allocation and no virtual dispatch on the audio thread.

Latency is exactly fftSize samples and is independent of the caller's block sizes: every STFT frame is anchored to its absolute position in the sample stream, so chopping the stream into arbitrary (even 1-sample) blocks produces bit-identical output.

Threading: owner-managed. prepare()/reset() from a setup thread while idle; processBlock() from the audio thread. No cross-thread setters.

Dependencies: FFT.h, WindowFunctions.h, AudioSpec.h, AudioBuffer.h, DenormalGuard.h.

dspark::SpectralProcessor<float> sp;
sp.prepare(spec, 2048);

// Real-time processing in the audio thread using a lambda:
sp.processBlock(buffer, [](float* freqData, int numBins) {
    // freqData is interleaved [re0, im0, re1, im1, ...]
    // Modify magnitudes/phases here directly.
});

Definition in file SpectralProcessor.h.
