Reverb.h File Reference

Convolution reverb with one-line IR loading and progressive API. More...

#include "../Core/Convolver.h"
#include "../Core/DryWetMixer.h"
#include "../Core/RingBuffer.h"
#include "../Core/AudioSpec.h"
#include "../Core/AudioBuffer.h"
#include "../Core/DspMath.h"
#include "../Core/Resampler.h"
#include "../Core/StateBlob.h"
#include "../IO/WavFile.h"
#include <algorithm>
#include <atomic>
#include <cmath>
#include <cstddef>
#include <cstdint>
#include <memory>
#include <vector>

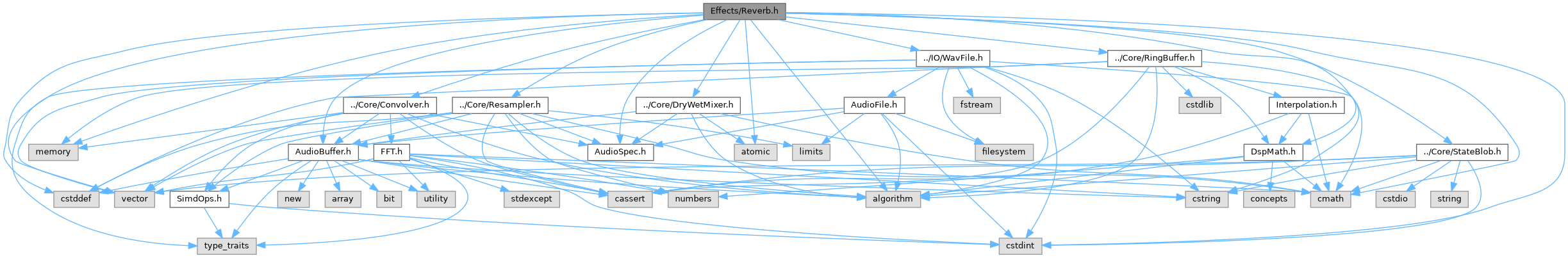

Include dependency graph for Reverb.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	dspark::Reverb< T >
	Convolution reverb with IR loading, dry/wet, and pre-delay. More...
struct	dspark::Reverb< T >::ConvolverBank

Namespaces
namespace	dspark
	Main namespace for the DSPark framework.

Detailed Description

Convolution reverb with one-line IR loading and progressive API.

Wraps the Convolver engine into a complete reverb effect with dry/wet mix, pre-delay, and automatic IR management. Supports loading impulse responses from WAV files or from raw sample data. The dry path is delay-compensated against the convolution engine's latency, so dry and wet stay sample-aligned at any mix setting (getLatency() reports the shared latency to the host).

IR shaping (setDecayScale / setStretch) reshapes the loaded impulse response without touching the stored original, so the controls are always relative to the file as loaded:

• Decay scale multiplies the IR's own T60 (estimated from its Schroeder decay curve). Values below 1 also trim the now-silent tail, which directly reduces convolution CPU cost.
• Stretch resamples the IR (tape-speed style): above 1 the space gets larger and darker, below 1 smaller and brighter.

Three levels of API complexity:

• Level 1 (simple): reverb.loadIR("hall.wav"); reverb.setMix(0.3f);
• Level 2 (intermediate): Pre-delay, IR decay scale / stretch.
• Level 3 (expert): Direct access to Convolver and DryWetMixer internals.

Threading: prepare() belongs to the setup thread (allocates; never call it concurrently with processing). processBlock() and reset() belong to the audio thread. loadIR(), setDecayScale(), setStretch() and setState() rebuild the convolver bank (they allocate) on the calling GUI/setup thread and publish it atomically: safe while audio runs, one writer at a time. setMix()/setPreDelay() are lock-free atomic publications, safe from any thread. Non-finite setter arguments are ignored. Loading an IR changes getLatency(): hosts must be notified.

File loading (loadIR from a path) is excluded when DSPARK_NO_FILE_IO is defined; the raw-data overload keeps working on embedded targets.

Dependencies: Convolver.h, DryWetMixer.h, RingBuffer.h, AudioSpec.h, AudioBuffer.h, DspMath.h, Resampler.h, StateBlob.h, WavFile.h (only without DSPARK_NO_FILE_IO).

dspark::Reverb<float> reverb;
reverb.prepare(spec);
reverb.loadIR("hall.wav");   // One line, done
reverb.setMix(0.3f);         // 30% wet
reverb.processBlock(buffer);

// With pre-delay:
reverb.setPreDelay(20.0f);   // 20 ms

Definition in file Reverb.h.
