Stereo phase correlation meter with goniometer feed. More...

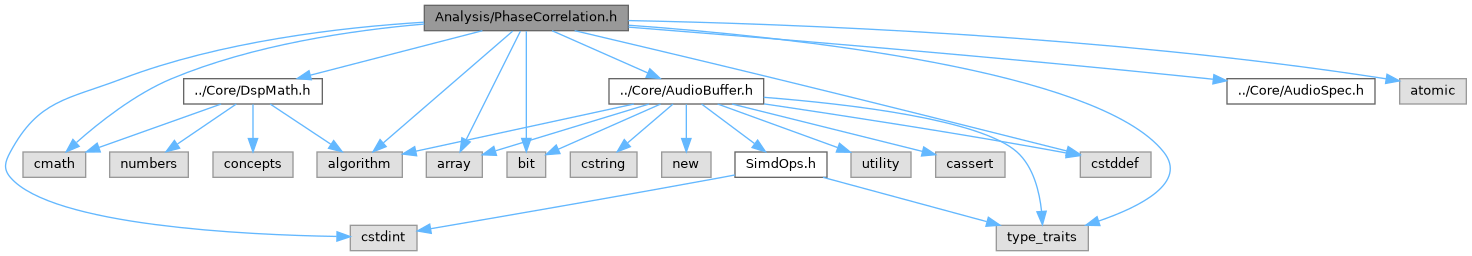

#include "../Core/AudioBuffer.h"#include "../Core/AudioSpec.h"#include "../Core/DspMath.h"#include <algorithm>#include <array>#include <atomic>#include <bit>#include <cmath>#include <cstddef>#include <cstdint>#include <type_traits>
Go to the source code of this file.
Classes | |
| class | dspark::PhaseCorrelation< T > |
| Correlation/balance meter and goniometer data source. More... | |
| struct | dspark::PhaseCorrelation< T >::GonioPoint |
| One mid/side point for goniometer displays. More... | |
Namespaces | |
| namespace | dspark |
| Main namespace for the DSPark framework. | |
Detailed Description
Stereo phase correlation meter with goniometer feed.
The standard broadcast correlation meter: the normalized cross-correlation of left and right at lag zero, exponentially windowed,
r = E[L*R] / sqrt(E[L^2] * E[R^2]) in [-1, +1]
+1 means mono-compatible (in phase), 0 uncorrelated (wide/reverberant), -1 out of phase (mono cancellation). A stereo balance readout and a decimated mid/side point ring for goniometer (vectorscope) displays are included.
Readout floor: with program below roughly -120 dBFS RMS both correlation and balance read 0 (silence has no meaningful phase relationship).
Non-finite input samples: the poisoned averaging window is discarded (the accumulators restart from zero) and the last published readings are held; measurement resumes on the next clean block. Non-finite samples never reach the goniometer ring.
Threading:
- prepare(): setup thread (allocation-free; not concurrent with processing).
- processBlock(): audio thread (single stream owner).
- reset(): stream owner or setup (touches the same plain accumulators processBlock() writes; allocation-free).
- getCorrelation() / getBalance() / getGonioPoints(): any thread, lock-free. Goniometer points are individually atomic, so a concurrent reader never observes torn values; a reader that overlaps a large writer block may briefly copy points newer than the published write index (valid mid/side data, display-only reordering).
- getWindowMs(): reflects the last successful prepare(); read it from the setup thread or once preparation is complete.
Dependencies: AudioBuffer.h, AudioSpec.h, DspMath.h.
Definition in file PhaseCorrelation.h.
