Hilbert.h File Reference

FIR Hilbert transformer producing sample-aligned analytic signals. More...

#include "DspMath.h"
#include "DenormalGuard.h"
#include "SimdOps.h"
#include <algorithm>
#include <array>
#include <cassert>
#include <cmath>
#include <span>

Include dependency graph for Hilbert.h:

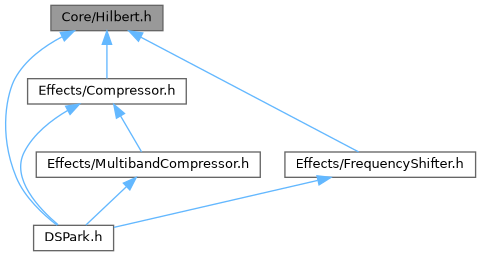

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	dspark::Hilbert< T >
	90-degree phase-differencing network (analytic-signal generator). More...
struct	dspark::Hilbert< T >::Result

Namespaces
namespace	dspark
	Main namespace for the DSPark framework.

Detailed Description

FIR Hilbert transformer producing sample-aligned analytic signals.

Used by FrequencyShifter (single-sideband shift) and Compressor (analytic envelope detector). The kernel is sample-rate independent and shared per process (lazily built, thread-safe); each instance owns only its delay line.

Threading: owner-managed. prepare/reset are setup-time; process and processBlock belong to the owning (audio) thread. Not internally thread-safe. processBlock installs a DenormalGuard; per-sample callers are expected to guard their own callback (framework convention) - the FIR itself cannot generate denormals, but denormal INPUTS would make all kTaps multiplies slow without one.

Dependencies: DspMath.h, DenormalGuard.h, SimdOps.h.

Definition in file Hilbert.h.
