DSParkClap.h File Reference

Native CLAP backend: the same plugin class, one more macro. More...

#include "../DSParkPlugin.h"
#include "clap/clap.h"
#include <algorithm>
#include <atomic>
#include <cstdint>
#include <cstdlib>
#include <cstring>
#include <new>
#include <vector>

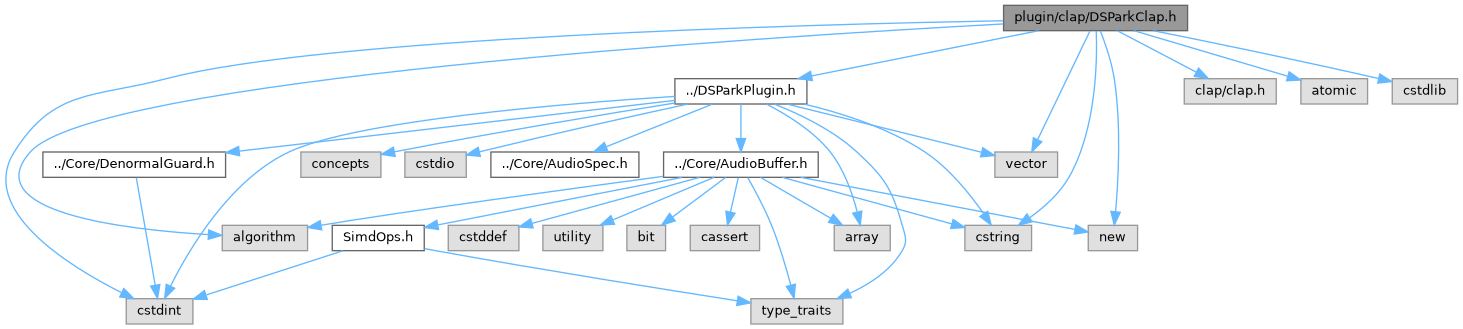

Include dependency graph for DSParkClap.h:

Go to the source code of this file.

Classes
struct	dspark::plugin::clap_backend::Plugin< P >
struct	dspark::plugin::clap_backend::Factory< P >
struct	dspark::plugin::clap_backend::Factory< P >::ProviderState

Namespaces
namespace	dspark
	Main namespace for the DSPark framework.
namespace	dspark::plugin
namespace	dspark::plugin::clap_backend

Macros
#define	DSPARK_PLUGIN_CLAP_INCLUDED   1
#define	DSPARK_CLAP_PLUGIN(PluginClass)
	Declares the CLAP module entry for one plugin class. May coexist with DSPARK_VST3_PLUGIN in the same translation unit: the resulting binary is a valid .vst3 AND a valid .clap at the same time.

Variables
constexpr uint32_t	dspark::plugin::clap_backend::kBypassParamId = 0x42595053u
constexpr int	dspark::plugin::clap_backend::kBypassRampSamples = 256

Detailed Description

Native CLAP backend: the same plugin class, one more macro.

CLAP (https://cleveraudio.org, MIT, vendored under plugin/clap/clap/) is a plain-C plugin ABI - the cleanest of the desktop formats. This backend exposes the exact same user class as the VST3 backend:

#include "plugin/vst3/DSParkVst3.h"
#include "plugin/clap/DSParkClap.h"
struct MyPlugin { ... };           // see plugin/DSParkPlugin.h
DSPARK_VST3_PLUGIN(MyPlugin)
DSPARK_CLAP_PLUGIN(MyPlugin)       // both ABIs can live in ONE binary:

// ship it as .vst3 AND as .clap

Implementation notes:

• CLAP parameters travel in PLAIN values (min..max), so clap_param_info maps 1:1 onto the declarative table; the wrapper still keeps its normalized shadows so state blobs stay byte-identical with the VST3 backend (presets are portable across formats by construction).
• Parameter events apply SAMPLE-ACCURATELY by default: every timestamped event splits processing at kAutomationQuantum boundaries (plugins may opt out, see DSParkPlugin.h). DSPark setters smooth internally either way.
• The wrapper-owned Bypass uses CLAP_PARAM_IS_BYPASS and the same short crossfade against the kept dry signal.
• Buses follow the declared ChannelSupport through audio-ports-config (Mono / Stereo configurations); Category::Instrument drops the audio inputs and HasMidi adds a note port accepting both CLAP note events and raw MIDI (notes, pitch bend, CC, pressure).
• HasTransport plugins receive the per-block clap transport as a TransportInfo; HasOfflineMode plugins get the render extension; a latency change after parameter motion notifies the host through clap_host_latency on the main thread (request_callback).
• Factory presets publish through preset-load + preset-discovery (the plugin DSO itself is the preset container; load keys are indices).
• process() runs under a DenormalGuard (FTZ/DAZ) so user DSP outside DSPark's own classes is covered in hosts that do not set it.
• GUI: when plugin/webview/DSParkWebViewEditor.h is included before this header and the class declares hasEditor = true, the gui extension embeds the WebView editor (otherwise hosts show their generic editor). Editor edits reach the host as gesture begin/end plus CLAP_EVENT_PARAM_VALUE through a lock-free queue drained by process()/flush(), so automation recording works.

Definition in file DSParkClap.h.

Macro Definition Documentation

DSPARK_CLAP_PLUGIN

#define DSPARK_CLAP_PLUGIN

(

PluginClass

)

Value:

    extern "C" CLAP_EXPORT const clap_plugin_entry_t clap_entry = {                \
        CLAP_VERSION_INIT,                                                         \
        &dspark::plugin::clap_backend::Factory<PluginClass>::sEntryInit,           \
        &dspark::plugin::clap_backend::Factory<PluginClass>::sEntryDeinit,         \
        &dspark::plugin::clap_backend::Factory<PluginClass>::sEntryGetFactory      \
    };

Declares the CLAP module entry for one plugin class. May coexist with DSPARK_VST3_PLUGIN in the same translation unit: the resulting binary is a valid .vst3 AND a valid .clap at the same time.

Definition at line 1574 of file DSParkClap.h.

DSPARK_PLUGIN_CLAP_INCLUDED

#define DSPARK_PLUGIN_CLAP_INCLUDED   1

Definition at line 53 of file DSParkClap.h.
